WELDBEND 105-322-040-000 PIPE FITTINGS
WELDBEND 105-322-040-000 PIPE FITTINGS

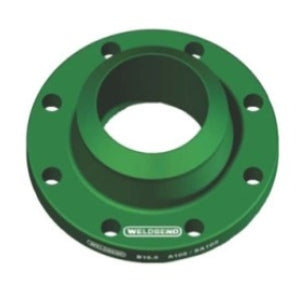

Weldbend 105-322-040-000 4 Class 300 Weld Neck XSB RF

Brand: WELDBEND
SKU: 105-322-040-000
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Weldbend 105-322-040-000 is a weld neck flange designed for applications requiring a raised face. This flange has a nominal size of four inches, with an inside diameter of 4.03 inches and a thickness of 1.19 inches. It is suitable for heavy-duty piping systems where reliability is essential.

  • Pressure rating of 740 psig.
  • Manufactured from forged carbon steel.
  • Temperature range of -20 to 100 degrees Fahrenheit.

Product Highlights

This flange is ideal for use in various industrial and construction applications, ensuring secure and durable connections.

Product Information

Standard Information

  • Manufacturer: Weldbend Corp
  • Type: Raised Face
Technical Specifications
Bolt Circle Diameter:
7.88 inches
Bolt Hole Size:
7/8 inches
Bore Size:
XS
Dimensions:
4-1/2 inches Diameter Weld
Domestic/Import:
Domestic
Hub Diameter:
5-3/4 inches
Inside Diameter:
4.03 inches
Length Through Hub:
3.32 inches
Material:
Forged Carbon Steel
Nominal Size:
4 inches
Number of Bolt Holes:
8
Outside Diameter:
10 inches
Pressure Class:
300 lb
Pressure Rating:
740 psig
Temperature Rating:
-20 to 100 degrees Fahrenheit
Thickness:
1.19 inches
