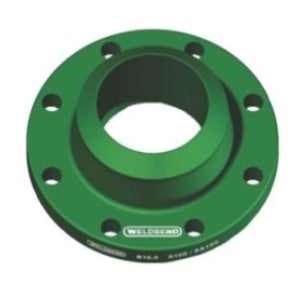

Weldbend 105-322-030-000 3 Class 300 RFWN XH Flg Sch80 Bore

Product Description

The Weldbend Weld Neck Flange with MPN 105-322-030-000 is designed for use in piping systems requiring high strength and durability. This flange has a nominal size of three inches and features a raised face, allowing for secure connections in various applications.

• Made of forged carbon steel for strength
• Pressure rated for up to 740 psig
• Temperature range from -20 to 100 degrees Fahrenheit

Product Highlights

The flange's construction ensures reliability in domestic installations, suitable for various plumbing and piping configurations.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Raised Face

Technical Specifications

• Nominal Size: 3 in
• Inside Diameter: 3.07 in
• Outside Diameter: 8-1/4 in
• Thickness: 1.06 in
• Hub Diameter: 4.62 in
• Length Through Hub: 3.06 in
• Bolt Circle Diameter: 6.62 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Bore Size: XS
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
