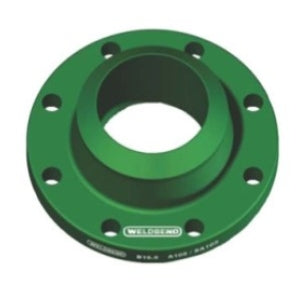

Weldbend 105-322-020-000 2 CLASS 300 RFWN XH FLANGE

Product Description

The Weldbend 105-322-020-000 is a raised face weld neck flange designed for various piping applications. This flange has a nominal size of two inches and an inside diameter of 2.07 inches. It features an outside diameter of six and a half inches. The flange is constructed from forged carbon steel for enhanced strength and durability in industrial settings.

• Standard size for easy compatibility with piping systems
• Rated for pressure up to 740 psig
• Domestic manufacturing ensures quality compliance

Product Highlights

This weld neck flange is suitable for high-pressure applications and is designed to withstand a temperature range from negative twenty to one hundred degrees Fahrenheit. It has eight bolt holes with a bolt circle diameter of five inches for secure installation.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Raised Face

Technical Specifications

• Nominal Size: 2 in
• Inside Diameter: 2.07 in
• Outside Diameter: 6-1/2 in
• Thickness: 0.81 in
• Hub Diameter: 3.31 in
• Length Through Hub: 2.69 in
• Bolt Circle Diameter: 5 in
• Number of Bolt Holes: 8
• Bolt Hole Size: 3/4 in
• Bore Size: XS
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Domestic/Import: Domestic
• Temperature Rating: -20 to 100 deg F
• Material: Forged Carbon Steel
