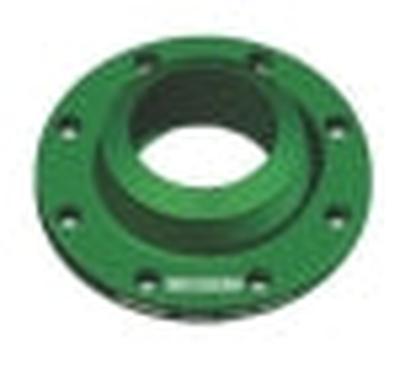

Weldbend 105-322-010-000 1 CLASS 300 RFWN XH FLANGE

Product Description

The Weldbend 105-322-010-000 is a raised face weld neck flange designed for various piping applications. This flange measures one inch in nominal size and has an inside diameter of one point zero five inches. It is suitable for high-pressure systems, with a pressure rating of seven hundred forty psig and a pressure class of three hundred pounds.

• Material: Forged Carbon Steel
• Operating temperature range: -20 to 100 degrees Fahrenheit
• Hub diameter: two point one two inches

Product Highlights

This flange is built for durability and reliability in demanding environments. The design ensures a tight seal for optimal performance in various industrial applications.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Raised Face

Technical Specifications

• Flange Size: 1 inch nominal
• Inside Diameter: 1.05 inches
• Outside Diameter: 4.88 inches
• Thickness: 0.62 inches
• Hub Diameter: 2.12 inches
• Length Through Hub: 2.38 inches
• Bolt Circle Diameter: 3.5 inches
• Bolt Hole Size: 3/4 inches
• Number of Bolt Holes: 4
• Bore Size: XS
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Domestic/Import: Domestic
