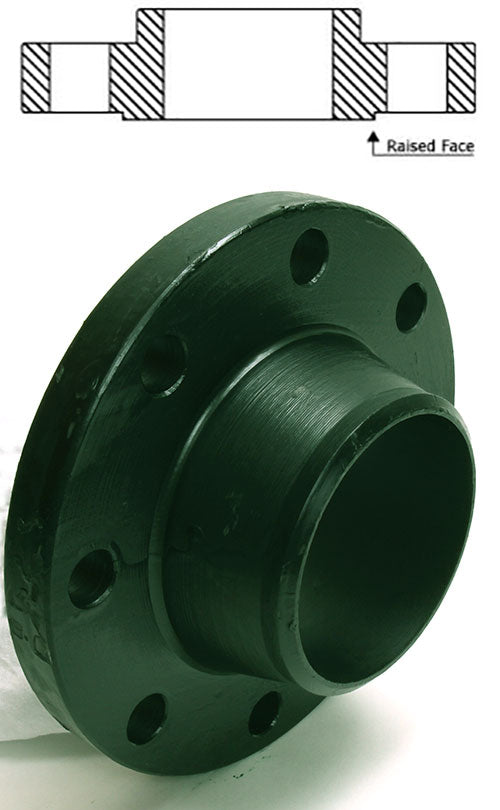

Weldbend 105-320-050-000 5 Class 300 Weld Neck Std RF

Product Description

The Weldbend 105-320-050-000 is a weld neck flange designed for high-pressure applications. This product features a nominal size of five inches with a raised face. Built from forged carbon steel, it provides strong performance under various working conditions.

• Constructed from forged carbon steel
• Rated for 740 psig pressure
• Includes multiple bolt holes for secure installation

Product Highlights

This weld neck flange is suitable for piping and fitting systems requiring reliable connections.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Raised Face

Technical Specifications

• Nominal Size: 5 in
• Inside Diameter: 5.05 in
• Outside Diameter: 11 in
• Thickness: 1.31 in
• Bore Size: SCH 40/STD
• Hub Diameter: 7 in
• Length Through Hub: 3.82 in
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Number of Bolt Holes: 8
• Bolt Circle Diameter: 9-1/4 in
• Bolt Hole Size: 7/8 in
• Domestic/Import: Domestic
