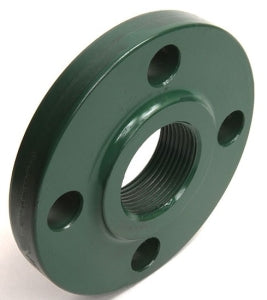

Weldbend 105-140-060-000 6 CLASS 150 RF THD FLANGE

Product Description

The Weldbend 105-140-060-000 is a raised face flange designed for reliable connections in piping systems. With a nominal size of six inches, it features a thickness of zero point nine four inches and a bolt circle diameter of nine and one half inches. This flange includes eight bolt holes, each sized at seven eighths inch, and uses a threaded connection for secure installation.

• Manufactured from forged carbon steel
• Pressure class rated at 150 lb, with a pressure rating of 285 psig
• Temperature rating from negative twenty to one hundred degrees Fahrenheit

Product Highlights

This flange is ideal for various applications, ensuring a stable and durable connection in system configurations. The design complies with industry standards, making it a reliable choice for both domestic and import needs.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• UPC: Not available

Technical Specifications

• Nominal Size: 6 inches
• Thickness: 0.94 inches
• Hub Diameter: 7.56 inches
• Length Through Hub: 1.5 inches
• Outside Diameter: 11 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Connection Type: Thread
• Bolt Circle Diameter: 9.5 inches
• Bolt Hole Size: 7/8 inch
• Number of Bolt Holes: 8
• Domestic/Import: Domestic
• Type: Raised Face
