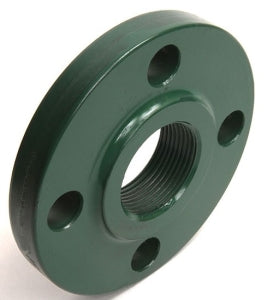

Weldbend 105-140-030-000 3 Class 150 RF Thd Flange

Product Description

The Weldbend 105-140-030-000 is a 3-inch class 150 raised face threaded flange. This durable flange is designed for use in various piping and fitting applications. It features a robust construction suitable for high-pressure environments.

• Thread connection design for simple installation
• Manufactured from forged carbon steel
• Suitable for temperatures from -20 to 100 degrees Fahrenheit

Product Highlights

This flange meets industry standards for pressure and temperature, ensuring reliability in various conditions.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• UPC: Not Available

Technical Specifications

• Nominal Size: 3 inches
• Bolt Circle Diameter: 6 inches
• Thickness: 0.88 inches
• Material: Forged Carbon Steel
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 inch
• Hub Diameter: 4-1/4 inches
• Length Through Hub: 1.12 inches
• Connection Type: Thread
• Domestic/Import: Domestic
