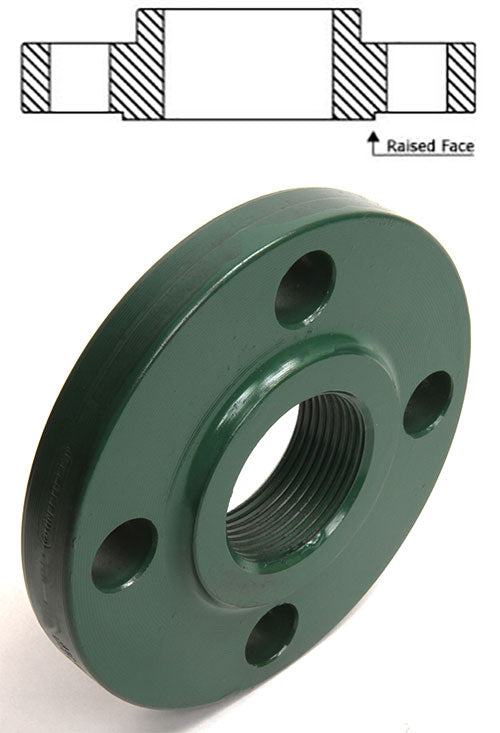

Weldbend 105-140-020-000 2 CLASS 150 RF THD FLANGE 150 lb

Product Description

The Weldbend 105-140-020-000 is a raised face flange designed for reliable performance in piping systems. This flange measures two inches nominal and features a thickness of 0.69 inches. It has a bolt circle diameter of four and three-quarter inches and is equipped with four bolt holes with a size of three-quarters of an inch.

• Pressure rating of 285 psig for strong resistance
• Constructed from forged carbon steel for durability
• Designed for temperatures ranging from -20 to 100 degrees Fahrenheit

Product Highlights

This flange is suitable for threaded connections and is compliant with ASME SA105 and ASTM A105 standards.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Warranty: 1 Year Limited

Technical Specifications

• Bolt Circle Diameter: 4-3/4 in
• Bolt Hole Size: 3/4 in
• Connection Type: Thread
• Domestic/Import: Domestic
• Hub Diameter: 3.06 in
• Length Through Hub: 0.94 in
• Material: Forged Carbon Steel
• Nominal Size: 2 in
• Number of Bolt Holes: 4
• Outside Diameter: 6 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Thickness: 0.69 in
• Type: Raised Face
