WELDBEND 105-131-160-000 16 Class 150 BLIND FF

Product Description

The WELDBEND Blind Flange, MPN 105-131-160-000, has a flat face design suitable for sealing piping systems. It has a nominal size of sixteen inches and is made from carbon steel for durability. This flange is rated for a pressure of 285 psig and a temperature range between negative twenty to one hundred degrees Fahrenheit.

• Manufactured by WELDBEND CORP
• Conforms to ASME SA105/B16.5 and ASTM A105
• Standard warranty for one year

Product Highlights

This product is ideal for use in various piping applications where flanged joints are necessary and offers reliable performance and durability.

Product Information

Standard Information

• Material: Carbon Steel
• Type: Flat Face

Technical Specifications

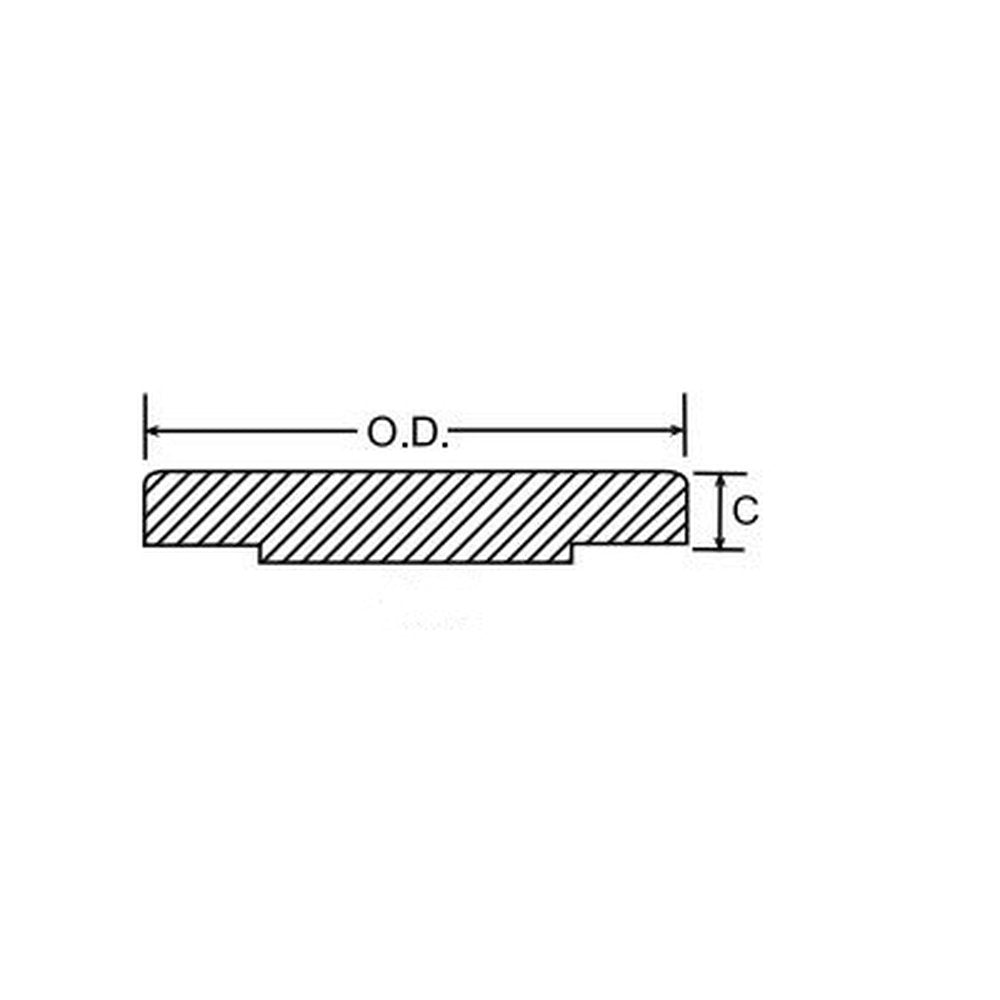

• Nominal Size: 16 in
• Thickness: 1.38 in
• Outside Diameter: 23-1/2 in
• Bolt Circle Diameter: 21-1/4 in
• Number of Bolt Holes: 16
• Bolt Hole Size: 1-1/8 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
• Manufacturer: WELDBEND CORP
