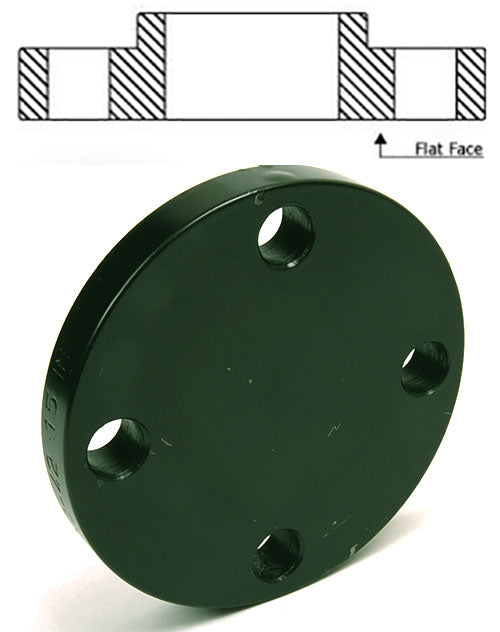

Weldbend 105-131-020-000 2 Class 150 Blind FF

Product Description

The Weldbend 105-131-020-000 is a blind flange designed for piping systems, featuring a flat face construction. This product is made of carbon steel and intended for nominal two-inch applications.

• Thickness measures zero point sixty-nine inches.
• Rated for a pressure class of 150 lb.
• Pressure rating of two hundred eighty-five psig.

Product Highlights

This blind flange is suitable for connecting to standard piping systems and features four bolt holes for secure attachment.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Flat Face

Technical Specifications

• Nominal Size: 2 in
• Outside Diameter: 6 in
• Bolt Circle Diameter: 4-3/4 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Material: Carbon Steel
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Thickness: 0.69 in
• Domestic/Import: Domestic
