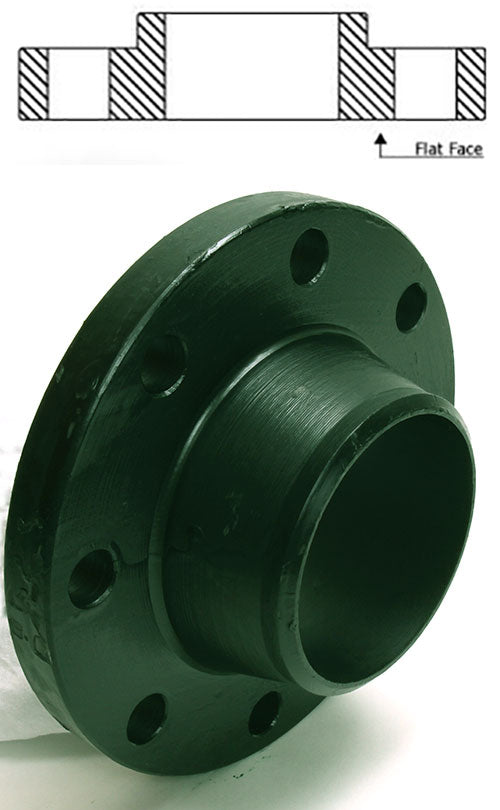

WELDBEND 105-123-060-000 6 Class 150 Weld Neck XSB FF

Product Description

The WELDBEND 105-123-060-000 is a weld neck flange designed for demanding piping applications. With a nominal size of six inches and a flat face, this flange is built to provide reliable connections in high-pressure environments.

• Manufactured from forged carbon steel
• Pressure rating of 285 psig
• Designed for use in temperature ranges from -20 to 100 degrees Fahrenheit

Product Highlights

This flange features a thickness of 0.94 inches and a bore size identified as XSB. The bolt circle diameter measures nine and a half inches and accommodates eight bolt holes. Ideal for projects requiring robust and durable connections.

Product Information

Standard Information

• Manufacturer: WELDBEND CORP
• Type: Flat Face

Technical Specifications

• Nominal Size: 6 in
• Inside Diameter: 6.07 in
• Outside Diameter: 11 in
• Hub Diameter: 7.56 in
• Length Through Hub: 3.44 in
• Thickness: 0.94 in
• Bolt Hole Size: 7/8 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Bore Size: XSB
• Number of Bolt Holes: 8
• Domestic/Import: Domestic
