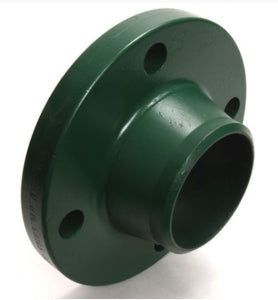

Weldbend 105-121-100-000 10 Class 150 Weld Neck Std FF

Product Description

The Weldbend Weld Neck Flange, model 105-121-100-000, is ideal for connecting pipes in various applications. Made from forged carbon steel, this flange ensures strength and durability. It is designed for flat face connections, providing a reliable seal in piping systems.

• Pressure Rating: 285 psig
• Material: Forged Carbon Steel
• Temperature Range: -20 to 100 degrees Fahrenheit

Product Highlights

This product effectively supports high-pressure applications and is suitable for domestic use.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Flat Face

Technical Specifications

• Nominal Size: 10 inches
• Inside Diameter: 10.02 inches
• Outside Diameter: 16 inches
• Thickness: 1.12 inches
• Number of Bolt Holes: 12
• Bolt Circle Diameter: 14-1/4 inches
• Bolt Hole Size: 1 inch
• Length Through Hub: 3.94 inches
• Hub Diameter: 12 inches
• Pressure Class: 150 lb
• Domestic/Import: Domestic
• Standards/Approval: ASME SA105/B16.5, ASTM A105
