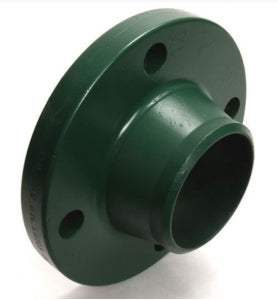

Weldbend 105-120-240-000 24 Class 150 WELD NECK Std RF

Product Description

Weldbend Weld Neck Flange, with MPN 105-120-240-000, is designed for robust applications. It features a nominal size of twenty-four inches and a raised face for effective sealing. This flange is suitable for various piping systems.

• Manufactured from Forged Carbon Steel
• Meets ASME SA105 and ASTM A105 standards
• Dimensions include a thickness of 1.81 inches and a pressure rating of 285 psig

Product Highlights

This flange is ideal for medium to high-pressure applications and can operate within a temperature range of -20 to 100 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Warranty: 1 Year Limited

Technical Specifications

• Nominal Size: 24 inches
• Bolt Circle Diameter: 29.5 inches
• Bolt Hole Size: 1.375 inches
• Hub Diameter: 26.12 inches
• Inside Diameter: 23.25 inches
• Outside Diameter: 32 inches
• Length Through Hub: 5.94 inches
• Number of Bolt Holes: 20
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Thickness: 1.81 inches
• Bore Size: SCH 40/STD
• Type: Raised Face
• Domestic/Import: Domestic
• Temperature Rating: -20 to 100 degrees Fahrenheit
