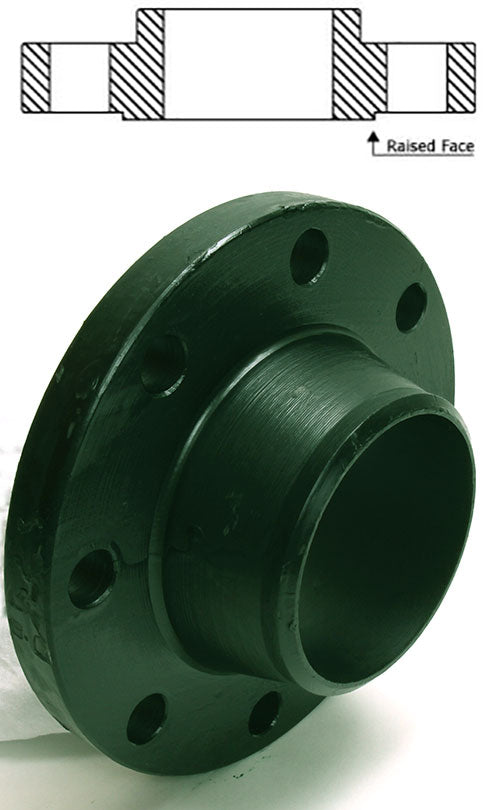

Weldbend 105-120-080-000 8 Class 150 Weld Neck Flange RF

Product Description

The Weldbend Weld Neck Flange, MPN 105-120-080-000, is an essential component in piping systems. It is designed for reliable connections in various applications including industrial, commercial, and residential settings. This flange features a raised face and a nominal size of eight inches, catering to a range of welding and piping needs.

• Constructed of forged carbon steel for durability.
• Capable of handling pressure ratings up to 285 psig.
• Suitable for a temperature range of -20 to 100 degrees Fahrenheit.

Product Highlights

Weldbend's Weld Neck Flange ensures strong and efficient connections for pipes, making it ideal for various fluid and gas systems.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Raised Face

Technical Specifications

• Nominal Size: 8 in
• Inside Diameter: 7.98 in
• Outside Diameter: 13-1/2 in
• Thickness: 1.06 in
• Bolt Circle Diameter: 11-3/4 in
• Bolt Hole Size: 7/8 in
• Hub Diameter: 9.69 in
• Length Through Hub: 3.94 in
• Bore Size: SCH 40/STD
• Number of Bolt Holes: 8
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
