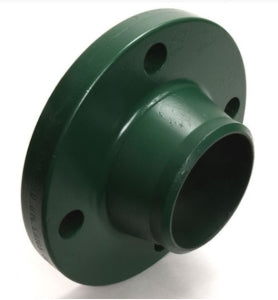

Weldbend 105-120-020-000 2 CLS 150 RF WNECK FLANGE

Product Description

The Weldbend 105-120-020-000 is a 2 inch raised face weld neck flange. It is designed for high-pressure applications and is made from forged carbon steel. The flange features a nominal size of 2 inches and has an inside diameter of 2.07 inches. This weld neck flange meets ASME standards for performance and durability.

• Welded construction for strong connections
• Compatible with SCH 40/STD bore pipe systems
• Designed for pressures up to 285 psig

Product Highlights

This product is suitable for various piping systems, ensuring reliable and efficient fluid flow. The raised face design allows for improved sealing when mated with corresponding flanges.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Warranty: 1 Year Limited

Technical Specifications

• Nominal Size: 2 in
• Inside Diameter: 2.07 in
• Outside Diameter: 6 in
• Thickness: 0.69 in
• Hub Diameter: 3.06 in
• Length Through Hub: 2.44 in
• Bolt Circle Diameter: 4-3/4 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 in
• Pressure Rating: 285 psig
• Pressure Class: 150 lb
• Bore Size: SCH 40/STD
• Temperature Rating: -20 to 100 deg F
• Material: Forged Carbon Steel
• Domestic/Import: Domestic
