Weldbend 105-110-200-000 20 Class 150 Slip-On RF

Product Description

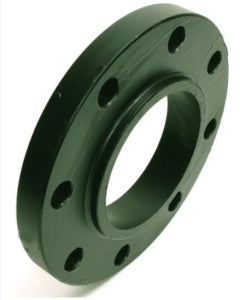

The Weldbend Slip-On Flange with MPN 105-110-200-000 is a raised face flange designed for piping applications. This flange is made of forged carbon steel, providing strength and durability. The nominal size is twenty inches, and it features a standard bolt circle of twenty-five inches.

• Material: Forged Carbon Steel
• Pressure Rating: 285 psig
• Thickness: 1.62 inches

Product Highlights

This flange is suitable for various industrial piping systems and can handle temperatures from negative twenty to one hundred degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Model: 20 Class 150 Slip-On RF

Technical Specifications

• Bolt Circle Diameter: 25 inches
• Bolt Hole Size: 1-1/4 inches
• Hub Diameter: 22 inches
• Inside Diameter: 20.2 inches
• Length Through Hub: 2.81 inches
• Outside Diameter: 27-1/2 inches
• Pressure Class: 150 lb
• Temperature Rating: -20 to 100 degrees Fahrenheit
