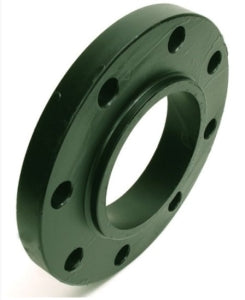

Weldbend 105-110-040-000 4 CLS 150 RF Slip On Flange

Product Description

The Weldbend 105-110-040-000 is a four-inch slip-on flange designed for various piping applications. It features a raised face and is made of forged carbon steel, ensuring durability and reliability in high-pressure situations. This flange is manufactured to meet ASME SA105/B16.5 and ASTM A105 standards, making it suitable for domestic use.

• Nominal Size: 4 inches
• Pressure Class: 150 lb
• Temperature Rating: -20 to 100 degrees Fahrenheit

Product Highlights

This flange is ideal for connecting pipes in low to medium-pressure systems. Its raised face helps with sealing, making it effective in preventing leaks under pressure.

Product Information

Standard Information

• Manufactured by: Weldbend Corp
• Type: Raised Face

Technical Specifications

• Nominal Size: 4 inches
• Inside Diameter: 4.57 inches
• Outside Diameter: 9 inches
• Thickness: 0.88 inches
• Hub Diameter: 5.31 inches
• Length Through Hub: 1-1/4 inches
• Bolt Circle Diameter: 7-1/2 inches
• Number of Bolt Holes: 8
• Bolt Hole Size: 3/4 inches
• Pressure Rating: 285 psig
• Domestic/Import: Domestic
