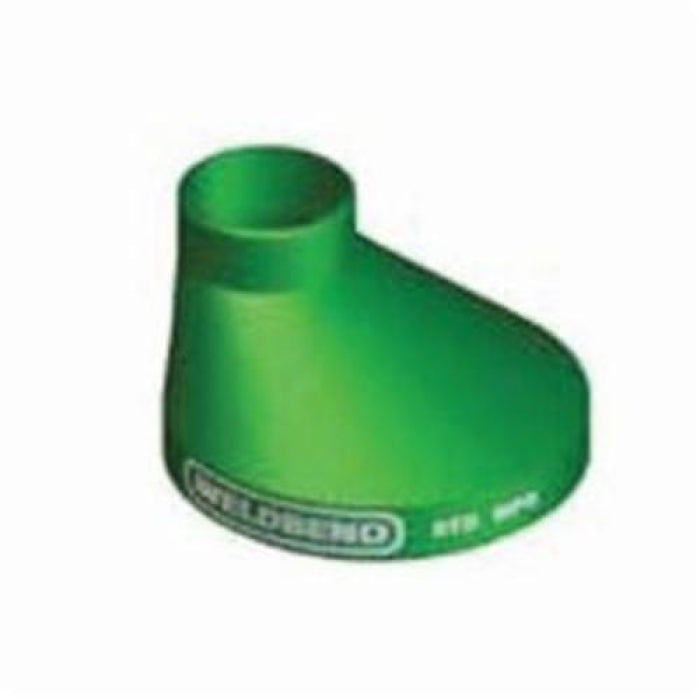

Weldbend 092-120-060 Eccentric Reducer 12 x 6 in SCH 40/STD

Product Description

The Weldbend Eccentric Reducer with MPN 092-120-060 is a fitting designed for pipe connections in various applications. This reducer provides a transition between two pipe sizes with an eccentric design, maintaining a consistent flow. It is suitable for use with carbon steel pipes and is built to last.

• Nominal Size: 12 inches x 6 inches
• Material: Carbon Steel
• Operating Temperature Range: -20 to 650 degrees Fahrenheit

Product Highlights

This reducer is ideal for industrial settings and applications requiring strong, reliable joints.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 092-120-060

Technical Specifications

• Dimensions: 12 inches ID x 12-3/4 inches OD x 3/8 inches thick (large), 6.06 inches ID x 6.62 inches OD x 0.28 inches thick (small)
• End Style: Butt Welded
• Type: Reducer Fitting
• Length: 8 inches
• Pressure Rating: 1035 lb
• Schedule Rating: SCH 40/STD
• Domestic/Import: Domestic
• Temperature Rating: -20 to 650 degrees Fahrenheit
