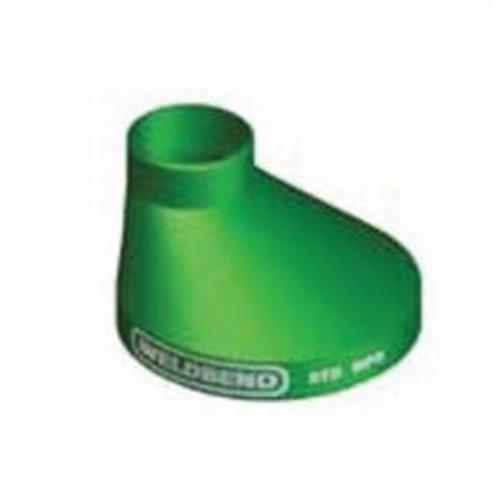

Weldbend 092-080-060 Eccentric Reducer 8 x 6 in Nominal SCH 40/STD Butt Welded

Product Description

The Weldbend Eccentric Reducer, MPN 092-080-060, is a fitting designed for pipelines. This reducer connects pipes of different diameters. It measures eight inches by six inches in nominal size and has a butt welded end style. The material is carbon steel, suitable for various applications in plumbing and HVAC systems.

• Nominal size: 8 x 6 inches
• Pressure rating: 1324 lb
• Temperature range: -20 to 650 degrees Fahrenheit

Product Highlights

This eccentric reducer is ideal for reducing pipe sizes while maintaining flow efficiency. The carbon steel construction ensures durability and resistance to harsh conditions.

Product Information

Standard Information

• Brand: Weldbend
• Part Number: 092-080-060

Technical Specifications

• Material: Carbon Steel
• Nominal Size: 8 x 6 inches
• Pressure Rating: 1324 lb
• Length: 6 inches
• End Style: Butt Welded
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 650 degrees Fahrenheit
• Dimensions: Large ID 7.976 in, OD 8.62 in, THK 0.322 in; Small ID 6.06 in, OD 6.62 in, THK 0.28 in
• Domestic/Import: Domestic
• Standards/Approvals: ASTM A234 Grade WPB, ASME B16.9
