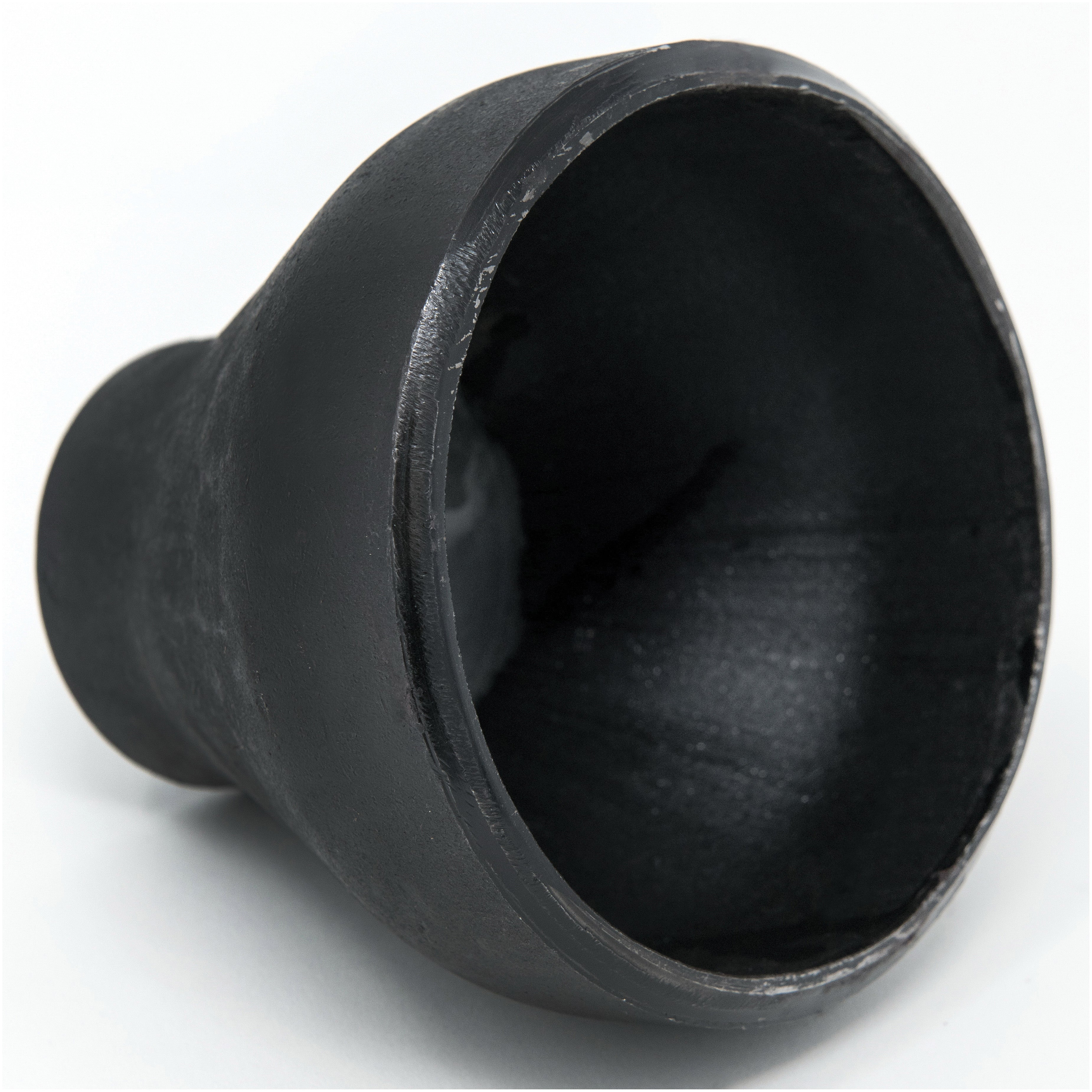

Weldbend 091-060-040 Concentric Reducer 6 x 4 in SCH 80/XH

Product Description

The Weldbend Concentric Reducer, MPN 091-060-040, is used to connect two pipes of different diameters. This fitting is made from carbon steel and has a nominal size of six x four inches. It features a butt welded end style, with a schedule rating of 80/XH. The overall length of the reducer is five and one-half inches and is rated for a pressure of up to two thousand three hundred seventy-four pounds.

• Material: Carbon Steel
• Schedule Rating: SCH 80/XH
• Temperature Range: -20 to 650 degrees Fahrenheit

Product Highlights

This reducer is ideal for various plumbing and piping applications, easily connecting larger and smaller pipes while maintaining the flow of fluids.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 091-060-040

Technical Specifications

• Dimensions: 5.756 inches ID x 6.62 inches OD x 0.432 inches thick (Large), 3.826 inches ID x 4.5 inches OD x 0.337 inches thick (Small)
• End Style: Butt Welded
• Fitting Type: Reducer
• Length: 5.5 inches
• Material: Carbon Steel
• Nominal Size: 6 x 4 inches
• Pressure Rating: 2374 pounds
• Schedule Rating: SCH 80/XH
• Standards/Approvals: ASTM A234 Grade WPB | ASME B16.9
• Temperature Rating: -20 to 650 degrees Fahrenheit
