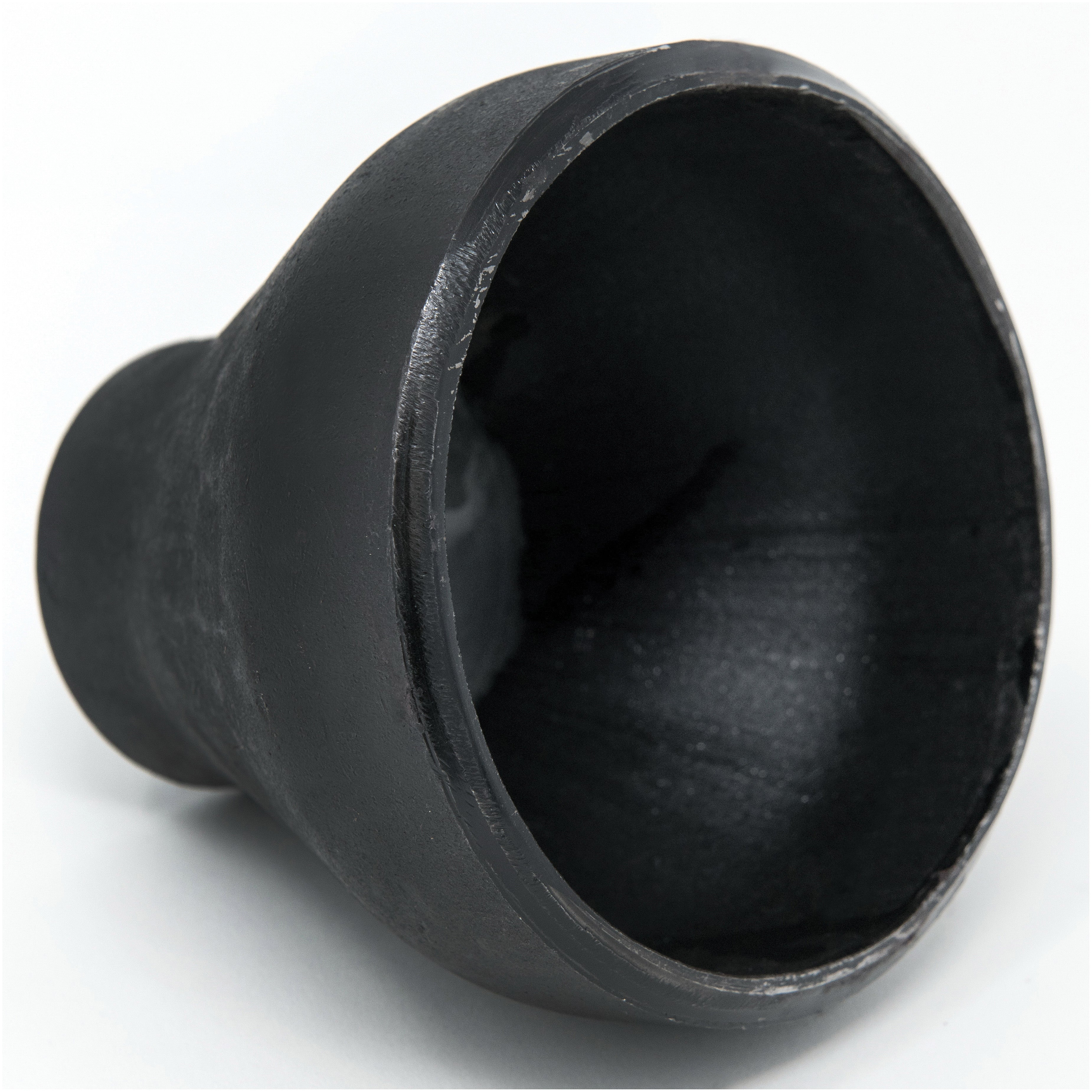

Weldbend 091-030-020 Concentric Reducer 3 x 2 Inches SCH 80/XH

Product Description

The Weldbend Concentric Reducer, MPN 091-030-020, is designed for connecting and transitioning between different pipe sizes. This fitting allows a smooth flow of liquids and gases while minimizing turbulence. Designed from high-quality carbon steel, this reducer is useful in various plumbing and HVAC applications.

• Concentric design for effective flow management.
• Rated for SCH 80/XH for high-pressure applications.
• Temperature range from negative twenty to six hundred fifty degrees Fahrenheit.

Product Highlights

This concentric reducer works in pipe systems that need a transition from three inches to two inches in diameter with a butt-welded end style, ensuring secure connections.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 091-030-020

Technical Specifications

• Dimensions: 2.9 inches ID x 3.5 inches OD x 0.3 inches thick (Large), 1.944 inches ID x 2.38 inches OD x 0.218 inches thick (Small)
• End Style: Butt Welded
• Fitting Type: Reducer
• Length: 3.5 inches
• Material: Carbon Steel
• Nominal Size: 3 x 2 inches
• Pressure Rating: 3178 lb
• Schedule Rating: SCH 80/XH
• Temperature Rating: -20 to 650 degrees Fahrenheit
• Standards/Approvals: ASTM A234 Grade WPB | ASME B16.9
