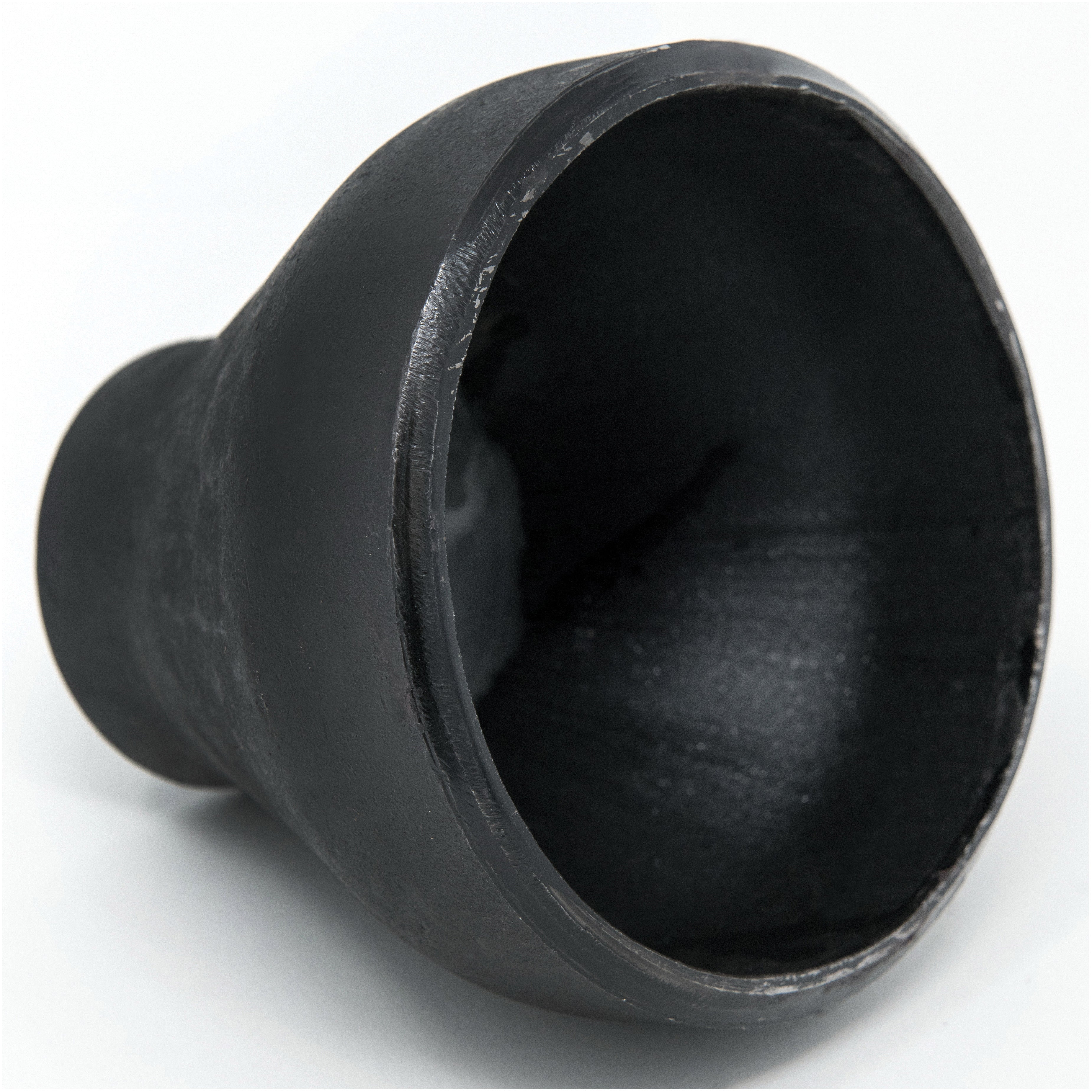

Weldbend 091-020-012 Concentric Reducer 2 x 1-1/2 in SCH 80/XH

Product Description

The Weldbend 091-020-012 is a concentric reducer fitting made from carbon steel. It is designed to connect pipes of different diameters. The nominal size is two inches by one and a half inches, and it features a butt-welded end style. This product is suitable for various applications in plumbing and industrial settings.

• Nominal size: 2 x 1-1/2 inches
• Material: Carbon Steel
• Temperature rating: -20 to 650 degrees Fahrenheit

Product Highlights

This reducer fitting is part of the SCH 80/XH schedule, which indicates its wall thickness and pressure handling capabilities.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 091-020-012

Technical Specifications

• Nominal Size: 2 x 1-1/2 inches
• End Style: Butt Welded
• Length: 3 inches
• Material: Carbon Steel
• Pressure Rating: 3422 lb
• Schedule Rating: SCH 80/XH
• Temperature Rating: -20 to 650 degrees Fahrenheit
• Dimensions: 1.944 in ID x 2.38 in OD x 0.218 in THK (Large), 1.5 in ID x 1.9 in OD x 0.2 in THK (Small)
