Weldbend 090-200-140 Concentric Reducer (20 x 14 in) P110126

Product Description

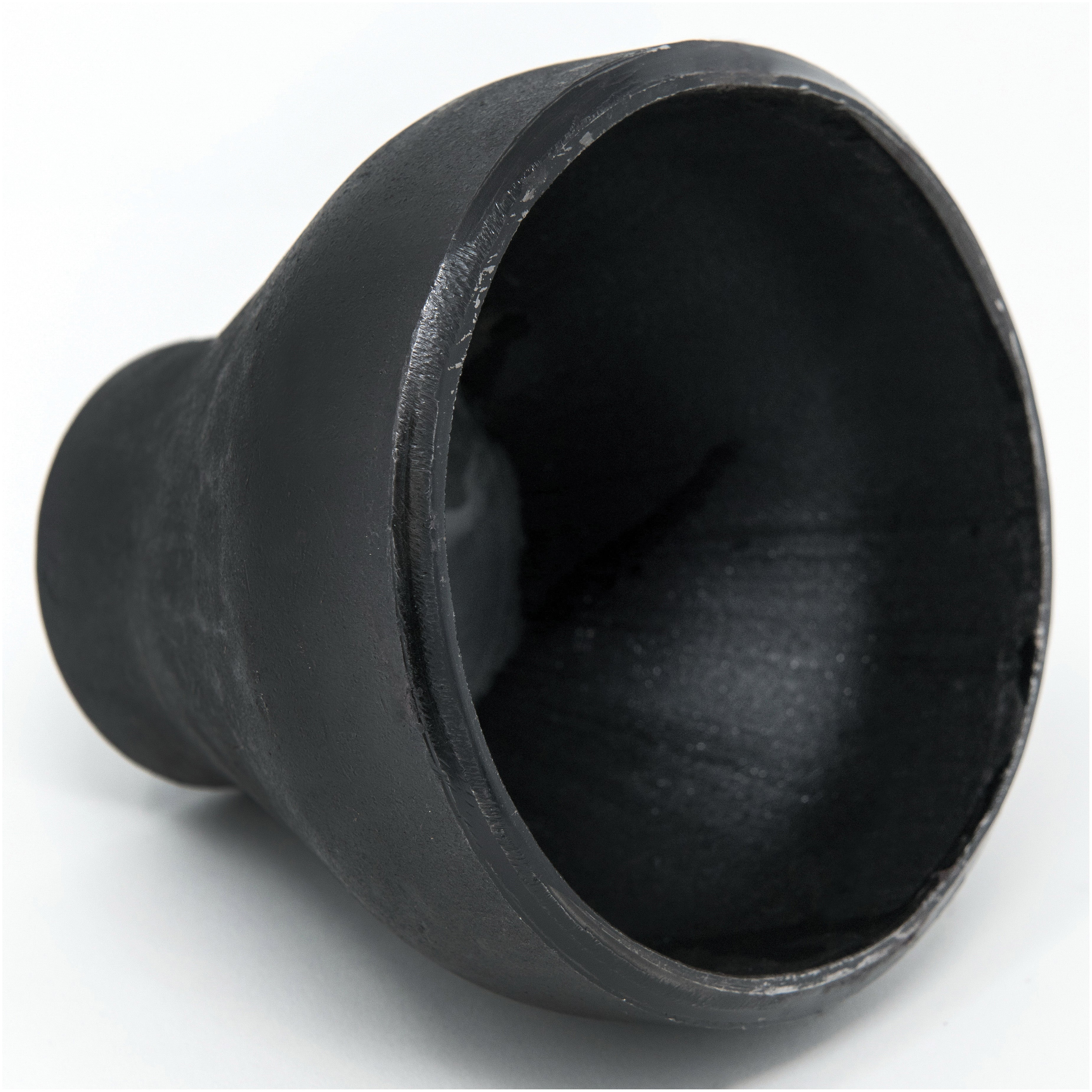

Weldbend 090-200-140 is a carbon steel concentric reducer for butt-weld pipe connections. It provides a nominal 20 x 14 in transition with Schedule 40/STD rating and a 20 in length. The large end measures 20 in OD x 19-1/4 in ID and the small end measures 14 in OD x 13-1/4 in ID, both with 3/8 in wall thickness. Rated to 653 lb and -20 to 650 deg F.

• Butt-weld end style for welded pipe connections
• Carbon steel construction with Schedule 40/STD and 20 in length
• Large end 20 in OD x 19-1/4 in ID; small end 14 in OD x 13-1/4 in ID; 3/8 in wall; 653 lb pressure rating; -20 to 650 deg F temperature range

Product Highlights

Concentric carbon steel reducer, nominal 20 x 14 in, butt-weld ends, Schedule 40/STD.

Product Information

Standard Information

• Brand: WELDBEND
• Manufacturer Part Number: 090-200-140
• Country of Origin: Domestic

Technical Specifications

• Manufacturer: Weldbend
• Brand: Weldbend
• Manufacturer Part Number: 090-200-140
• Alternate Part Number: P110126
• Part Number: 670346-21587
• UPC: 67034621588
• Material: Carbon Steel
• Fitting Type: Concentric Reducer
• End Style: Butt Welded
• Nominal Size: 20 x 14 in
• Length: 20 in
• Schedule Rating: SCH 40/STD
• Large End Dimensions: 20 in OD x 19-1/4 in ID x 3/8 in thickness
• Small End Dimensions: 14 in OD x 13-1/4 in ID x 3/8 in thickness
• Pressure Rating: 653 lb
• Temperature Rating: -20 to 650 deg F
• Country of Origin: USA
• Standards/Approvals: ISO 9001:2008
• Category: Carbon Steel Pipe Fittings; Carbon Steel Weld Fittings
• CPS Part Number: 35901
