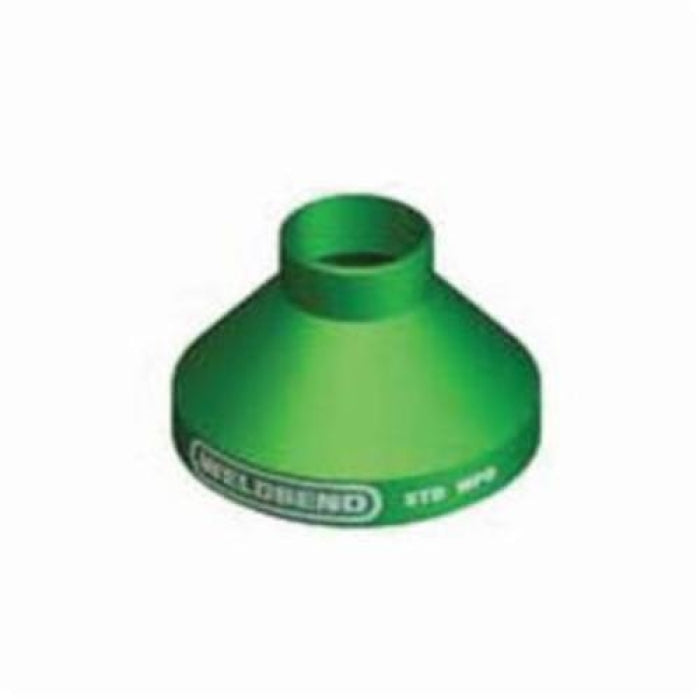

Weldbend 090-050-022 Concentric Reducer Power 5 x 2-1/2 in

Product Description

The Weldbend Concentric Reducer with MPN 090-050-022 is designed for use in various piping systems. This reducer is made of carbon steel and features a nominal size of five inches by two and a half inches. It is suitable for butt welding applications and can handle a pressure rating of one thousand six hundred fifty-nine pounds.

• Nominal size of 5 x 2-1/2 inches
• Temperature rating from -20 to 650 degrees Fahrenheit
• Designed for butt welding connections

Product Highlights

The Weldbend reducer connects larger pipes to smaller ones effectively. It is suitable for both domestic and industrial applications, maintaining performance under various temperature and pressure conditions.

Product Information

Standard Information

• Brand: Weldbend
• Type: Reducer

Technical Specifications

• Dimensions: 5.044 inches ID x 5.56 inches OD x 0.258 inches THK Large, 2.474 inches ID x 2.88 inches OD x 0.203 inches THK Small
• Domestic/Import: Domestic
• End Style: Butt Welded
• Length: 5 inches
• Material: Carbon Steel
• Nominal Size: 5 x 2-1/2 inches
• Pressure Rating: 1659 lb
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 650 degrees Fahrenheit
