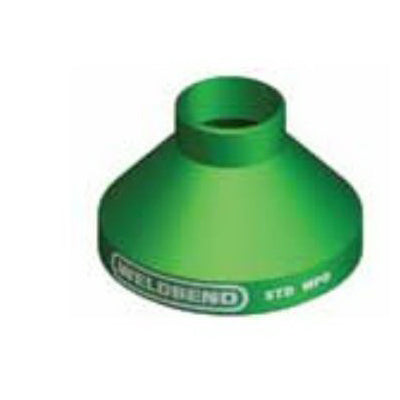

Weldbend 090-030-011 Concentric Reducer, Carbon Steel, 3 x 1-1/4 in Nominal, SCH 40/STD, Butt Welded End Style

Product Description

The Weldbend 090-030-011 Concentric Reducer is a reliable fitting for pipe connections. This reducer is made from carbon steel and features a butt welded end style. With nominal sizes of three inches by one and one-quarter inches, it meets SCH 40/STD specifications and has a length of three and one-half inches.

• Nominal Size: 3 x 1-1/4 inches
• Material: Carbon Steel
• End Style: Butt Welded

Product Highlights

This reducer fitting is ideal for use in a variety of piping systems. It ensures a secure connection between different pipe sizes and supports installations requiring high standards of durability.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 090-030-011

Technical Specifications

• Domestic/Import: Domestic
• Length: 3-1/2 inches
• Fitting Type: Reducer
• Schedule Rating: SCH 40/STD
• Standards/Approvals: ISO 9001:2008
• Large Diameter: 3.5 inches OD x 3.068 inches ID x 0.216 inches thick
• Small Diameter: 1.66 inches OD x 1.38 inches ID x 0.14 inches thick
