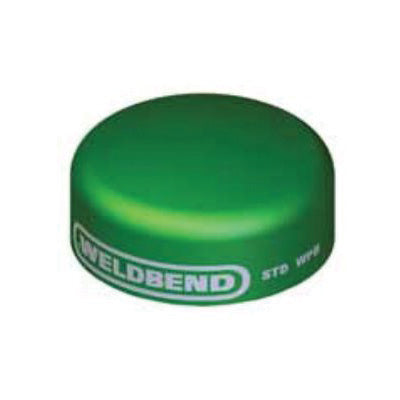

Weldbend 080-200-000 Pipe Cap, Carbon Steel, 20 in Nominal, SCH 40/STD, Butt Welded End Style

Product Description

The Weldbend Pipe Cap, MPN 080-200-000, is a fitting used to cap the end of a pipe. This product is made from carbon steel and has a nominal size of twenty inches. Designed with a butt welded end style, it complies with SCH 40/STD standards. The pipe cap supports a pressure rating of six hundred fifty-three pounds.

• Nominal size: 20 inches
• Material: Carbon Steel
• Temperature rating: -20 to 650 degrees Fahrenheit

Product Highlights

This cap fitting is suitable for pipelines requiring durable and reliable closures. The cap’s construction and design make it ideal for medium to high-pressure systems.

Product Information

Standard Information

• Brand: Weldbend
• Part Number: 080-200-000

Technical Specifications

• Thickness: 3/8 inches
• Pressure Rating: 653 lb
• Schedule Rating: SCH 40/STD
• End Style: Butt Welded
• Dimensions: 19-1/4 inches ID x 20 inches OD x 9 inches H
• Domestic/Import: Domestic
• Standards/Approvals: ASTM A234 Grade WPB, ASME B16.9
• Temperature Rating: -20 to 650 degrees Fahrenheit
