Weldbend 080-080-000 Weld Cap 8 in SCH 40/STD

Product Description

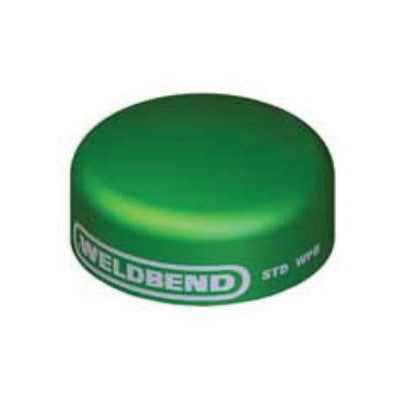

The Weldbend® 080-080-000 Pipe Cap is suitable for use in various piping systems. This product is an eight-inch nominal cap made from carbon steel, ideal for butt welded connections. It features a standard schedule rating of forty/STD and comes with a thickness of zero point three two two inches. The cap can withstand a pressure rating of one thousand three hundred twenty-four pounds.

• Nominal size: 8 inches
• Material: Carbon Steel
• Temperature rating: -20 to 650 degrees Fahrenheit

Product Highlights

This pipe cap is suitable for applications requiring reliable seal and support. Ideal for domestic installations, this cap ensures a durable connection in piping systems.

Product Information

Standard Information

• Brand: Weldbend®
• Manufacturer Part Number: 080-080-000

Technical Specifications

• Dimensions: 7.981 in ID x 8.625 in OD x 4 in H
• Domestic/Import: Domestic
• End Style: Butt Welded
• Fitting Type: Cap
• Material: Carbon Steel
• Nominal Size: 8 in
• Pressure Rating: 1324 lb
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 650 degrees Fahrenheit
• Standards/Approvals: ASTM A234 Grade WPB, ASME B16.9
