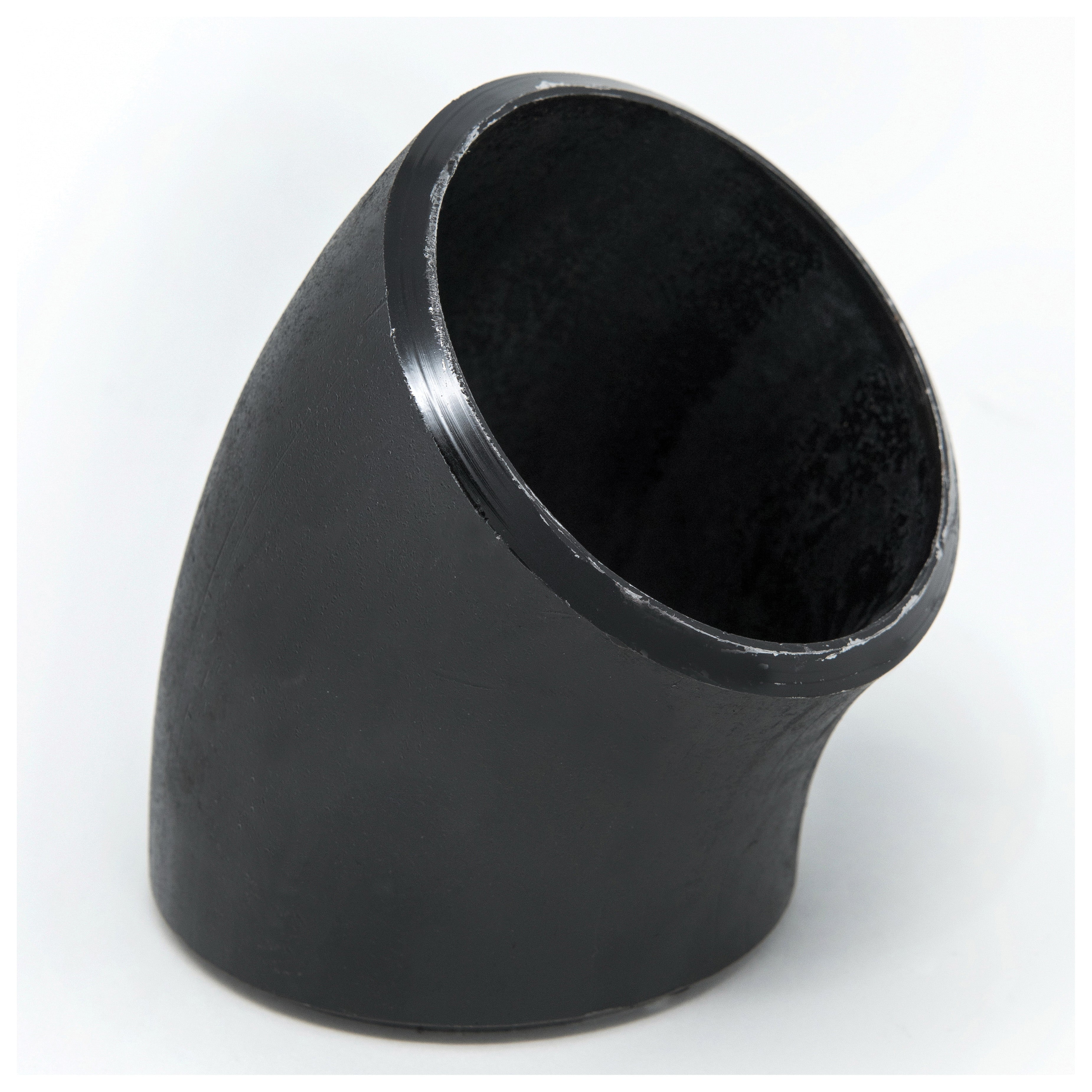

Weldbend 020-200-000 Pipe Elbow, Carbon Steel, 20 in Nominal, SCH 20, Butt Welded

Product Description

The Weldbend Pipe Elbow, MPN 020-200-000, is a 45-degree elbow fitting made from carbon steel. This fitting is designed for use in a wide range of piping applications where a change in direction is required. It is suitable for various projects that require reliable and durable pipe fittings.

• Material: Carbon Steel
• End Style: Butt Welded
• Nominal Size: 20 inches

Product Highlights

This elbow fitting allows for effective routing in piping systems. It has a thickness of three-eighths of an inch and is rated for a maximum pressure of six hundred fifty-three pounds.

Product Information

Standard Information

• Brand: Weldbend
• Manufacturer Part Number: 020-200-000

Technical Specifications

• Dimensions: 19-1/4 inches ID x 20 inches OD
• Fitting Type: 45-degree elbow
• Schedule Rating: SCH 20
• Temperature Rating: -20 to 650 degrees Fahrenheit
• Pressure Rating: 653 lb
• Standards/Approvals: ASTM A234 Grade WPB, ASME B16.9
