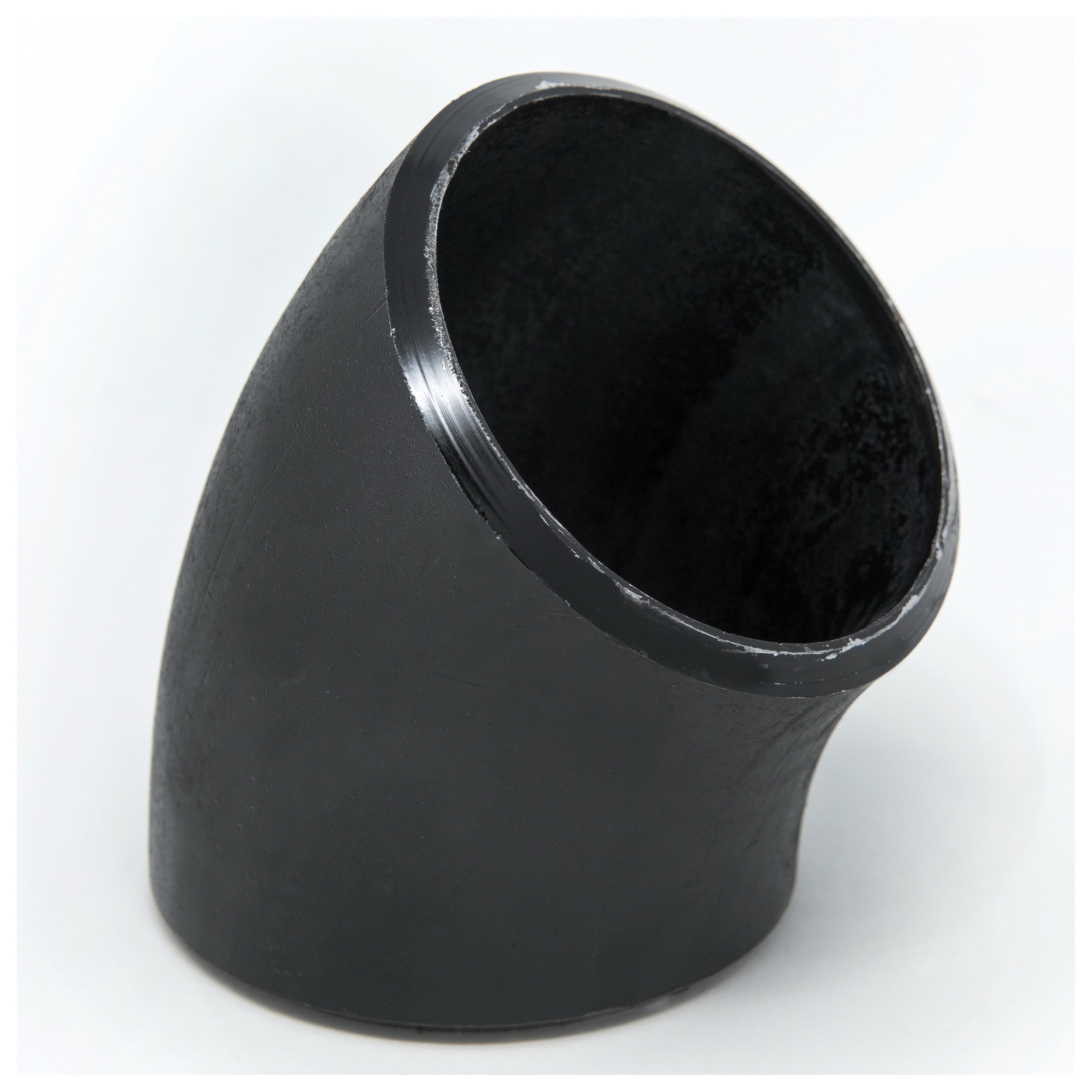

Weldbend 020-160-000 Pipe Elbow, Carbon Steel, 16 in Nominal, SCH 30

Product Description

Weldbend 020-160-000 is a pipe elbow made of carbon steel. This fitting is designed for use in systems requiring a forty-five-degree change in direction. It has a nominal size of sixteen inches and uses a butt welded end style. With a schedule rating of SCH 30, this elbow is suitable for various applications.

• Material: Carbon Steel
• Dimensions: Fifteen and one quarter inches ID by sixteen inches OD
• Temperature Rating: -20 to 650 degrees Fahrenheit

Product Highlights

This elbow fitting offers reliable performance in pipe systems, allowing smooth transitions and efficient flow.

Product Information

Standard Information

• Manufacturer: Weldbend
• MPN: 020-160-000

Technical Specifications

• Fitting Type: 45 degree elbow
• Thickness: 3/8 inches
• Pressure Rating: 820 lb
• Schedule Rating: SCH 30
• Standards/Approvals: ASTM A234 Grade WPB, ASME B16.9
• Temperature Rating: -20 to 650 degrees Fahrenheit
• Nominal Size: 16 inches
