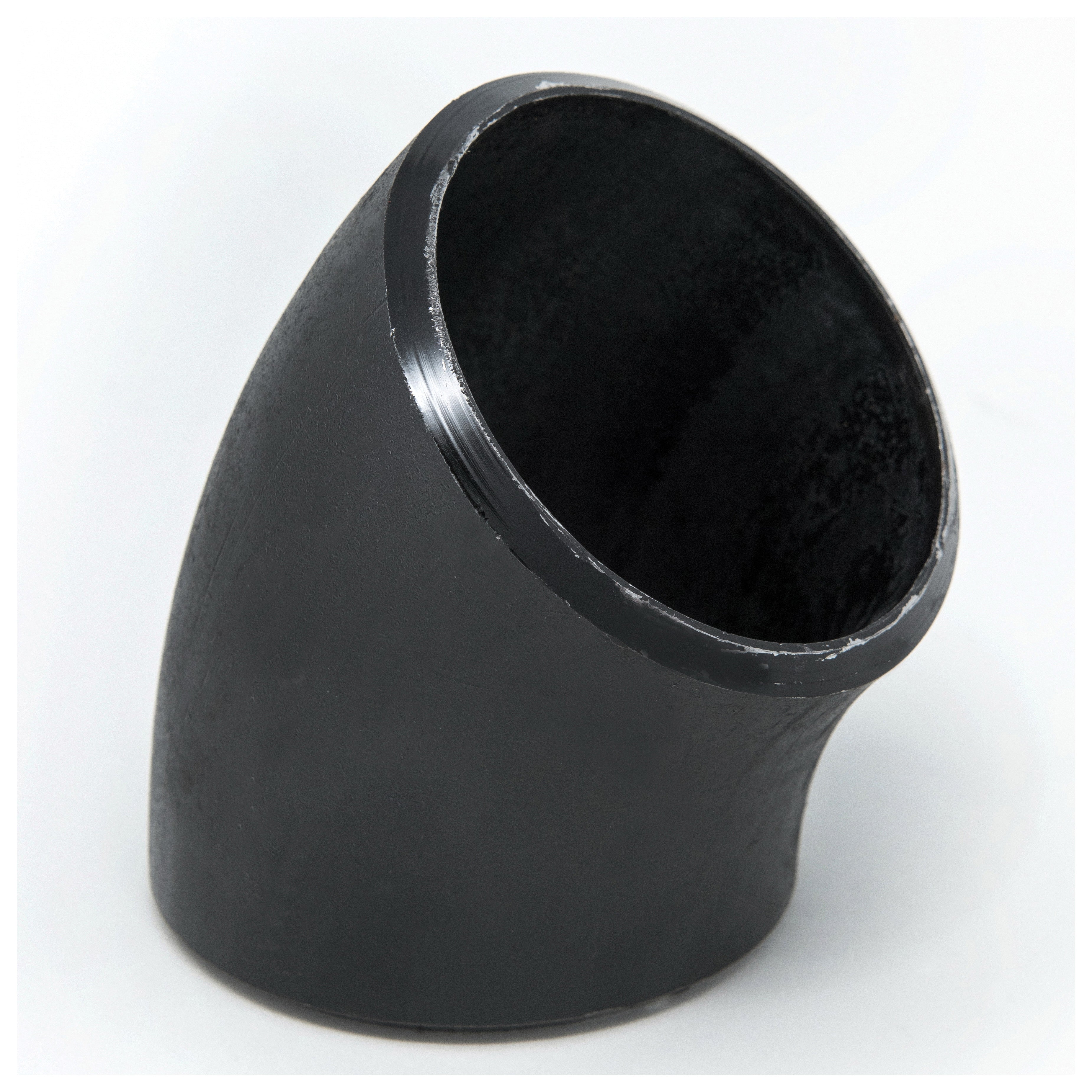

Weldbend 020-022-000 Pipe Elbow, Carbon Steel, 2-1/2 in Nominal, SCH 40/STD, Butt Welded End Style

Product Description

The Weldbend Pipe Elbow, with MPN 020-022-000, is a 45-degree elbow fitting designed for use in carbon steel applications. It features a nominal size of two and one-half inches and is suitable for SCH 40 and STD schedule systems. This product is butt welded, which ensures a strong connection in piping systems.

• Material: Carbon Steel
• Temperature Range: -20 to 650 degrees Fahrenheit
• Pressure Rating: 2583 lb

Product Highlights

Perfect for various industrial and plumbing applications, this elbow fitting facilitates seamless turns in piping systems without compromising durability or strength.

Product Information

Standard Information

• Brand: Weldbend
• Manufacturer Part Number: 020-022-000

Technical Specifications

• Nominal Size: 2-1/2 in
• End Style: Butt Welded
• Fitting Type: 45 deg Elbow
• Thickness: 0.203 in
• Pressure Rating: 2583 lb
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 650 degrees F
• Dimensions: 2.469 in ID x 2.88 in OD
