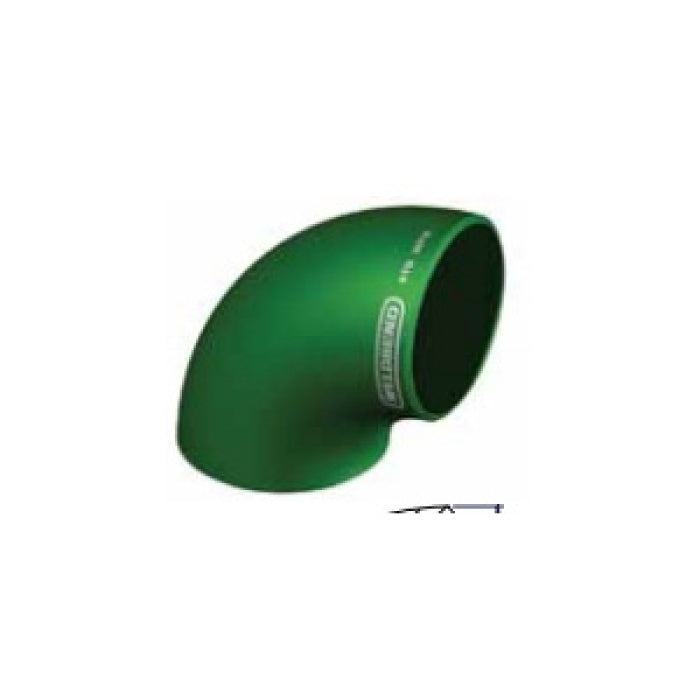

Weldbend 013-022-000 Short Radius Pipe Elbow Carbon Steel 2-1/2 in SCH 80/XH

Product Description

The Weldbend Pipe Elbow with MPN 013-022-000 is a short radius 90-degree elbow fitting designed for use in piping systems. This product is made from carbon steel and has a nominal size of two and a half inches. It features a butt welded end style, suitable for installation in high-pressure environments. The elbow is compliant with SCH 80/XH schedule ratings, ensuring it meets industry standards for durability and reliability.

• Meets SCH 80/XH standards
• Constructed from carbon steel
• Dimensions of two point three two three inches ID and two point eight eight inches OD

Product Highlights

This elbow is ideal for use in a variety of applications where a short radius turn is needed in piping.

Product Information

Standard Information

• Brand: Weldbend
• Manufacturer: Weldbend

Technical Specifications

• Dimensions: 2.323 in ID x 2.88 in OD
• End Style: Butt Welded
• Fitting Type: 90 deg Elbow
• Material: Carbon Steel
• Nominal Size: 2-1/2 in
• Schedule Rating: SCH 80/XH
• Thickness: 0.276 in
• Type: Short Radius
