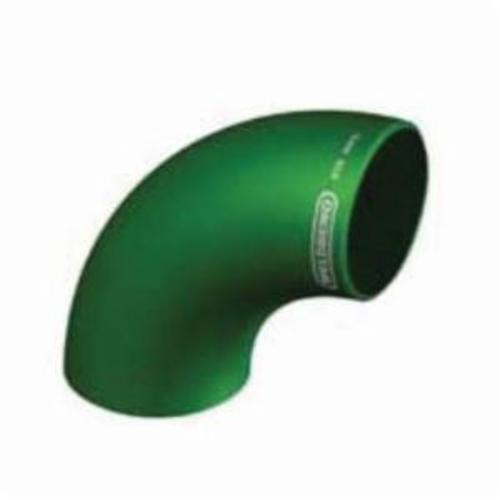

Weldbend 010-160-000 Long Radius Pipe Elbow, Carbon Steel, 16 in Nominal, SCH 30, Butt Welded End Style

Product Description

Weldbend 010-160-000 is a long radius pipe elbow designed for various piping systems. This fitting is made from carbon steel and has a nominal size of 16 inches. It features a butt welded end style and is rated for use with SCH 30 pipes. The elbow allows for a smooth transition in piping layouts at a 90-degree angle.

• Material: Carbon Steel
• Pressure Rating: 820 lb
• Temperature Range: -20 to 650 degrees Fahrenheit

Product Highlights

This elbow fitting is suitable for applications requiring durable and high-pressure connections. It provides reliable performance in both residential and commercial projects.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 010-160-000

Technical Specifications

• Dimensions: 15-1/4 inches ID x 16 inches OD
• End Style: Butt Welded
• Fitting Type: 90-degree Elbow
• Nominal Size: 16 inches
• Pressure Rating: 820 lb
• Schedule Rating: SCH 30
• Standards/Approvals: ASTM A234 Grade WPB, ASME B16.9
• Temperature Rating: -20 to 650 degrees Fahrenheit
• Type: Long Radius
