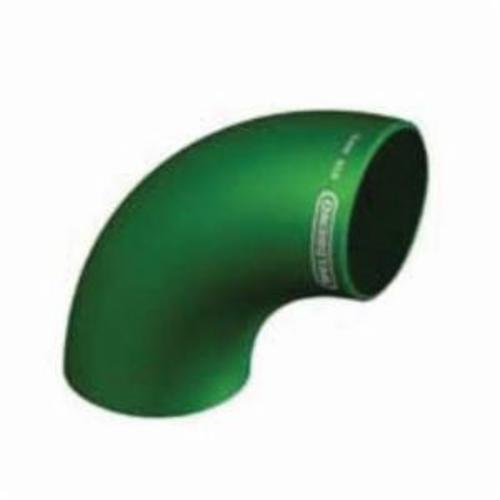

Weldbend 010-140-000 Long Radius Pipe Elbow 14 in Nominal SCH 30

Product Description

The Weldbend 010-140-000 is a long radius pipe elbow designed for reliable connections in piping systems. This fitting features a nominal size of fourteen inches and is constructed from carbon steel, providing durability and strength for various applications. The butt welded end style ensures a secure fit, making this elbow ideal for systems requiring a 90-degree angle without compromising flow.

• Material: Carbon Steel
• Schedule: SCH 30
• Temperature Range: -20 to 650 degrees Fahrenheit

Product Highlights

This long radius elbow supports superior flow characteristics and is suitable for use in high-pressure systems.

Product Information

Standard Information

• Brand: Weldbend
• Manufacturer Part Number: 010-140-000

Technical Specifications

• Nominal Size: 14 in
• Fitting Type: 90 deg Elbow
• End Style: Butt Welded
• Pressure Rating: 941 lb
• Schedule Rating: SCH 30
• Thickness: 3/8 in
• Dimensions: 13-1/4 in ID x 14 in OD
• Temperature Rating: -20 to 650 deg F
• Standards/Approvals: ASTM A234 Grade WPB | ASME B16.9
