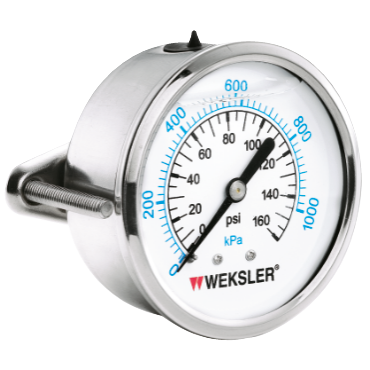

Weksler BY12YPJ4CW Stainless Steel Cased Liquid Filled Pressure Gauge

Product Description

The Weksler BY12YPJ4CW is a stainless steel cased liquid filled pressure gauge designed for various applications. This gauge features a back mount design, making it suitable for installation in tight spaces. It has a face diameter of two and a half inches and offers a pressure range from zero to three hundred PSI.

• Stainless steel case enhances durability
• Dual scale dials for easy reading
• Compatible with liquid pressure applications

Product Highlights

Ideal for use in industrial settings such as automated assembly, construction, and metalworking.

Product Information

Standard Information

• Brand: Weksler
• Part Number: 101849180

Technical Specifications

• Mounting Style: Back Mount
• Tube Material: Bronze
• Socket Material: Brass
• Gauge Function: Pressure Gauge
• Face Diameter: 2 1/2 in
• Pressure Range [Min]: 0 psi
• Pressure Range [Max]: 300 psi
• Gauge Pressure Range: 0 to 300 psi
• NPT Male: 1/4 in
• Case Material: Stainless Steel
• Gauge Type: Liquid
• Weight: 0.5 LB
• EAN or UPC: 759426477063
