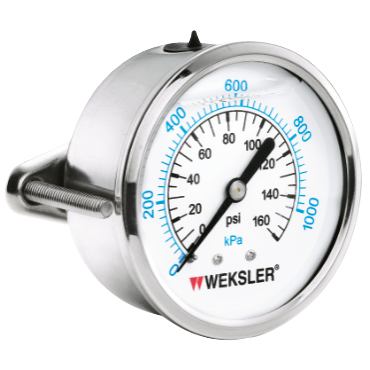

Weksler BY12YPD4CW Stainless Steel Cased Liquid Filled Pressure Gauge

Product Description

The Weksler BY12YPD4CW is a stainless steel cased liquid filled pressure gauge. It is designed for various applications in industrial settings, especially in construction and automated assembly equipment. This gauge features a one-quarter inch NPT back mount and a face diameter of two and a half inches. It operates within a pressure range of zero to thirty PSI.

• Liquid pressure gauge
• Stainless steel case
• Bronze tube with brass socket

Product Highlights

This gauge combines durability with accuracy, making it suitable for monitoring pressure in different environments.

Product Information

Standard Information

• Brand: Weksler
• Part Number: 101850534

Technical Specifications

• Gauge Type: Liquid
• Pressure Range [Max]: 30 psi
• Face Diameter: 2.5 inches
• Gauge Function: Pressure Gauge
• Tube Material: Bronze
• Mounting Style: Back Mount
• NPT Male: 1/4 inch
• Gauge Pressure Range: 0 to 30 psi
• Case Material: Stainless Steel
• Socket Material: Brass
• Pressure Range [Min]: 0 psi
• Weight: 0.5 LB
• EAN or UPC: 759426458550
