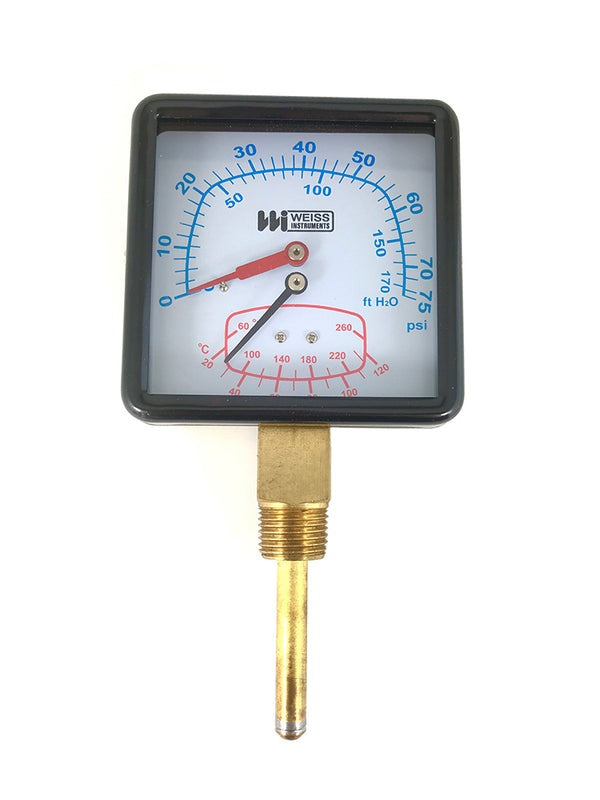

Weiss Instruments WEISS-CTP40L Tri-O-Meter (2.5 inches/3.5 inches Dial)

Product Description

The Weiss Instruments WEISS-CTP40L is a Tri-O-Meter that measures water pressure, water temperature, and system head in feet of H2O for hot water heating systems. A single instrument provides combined readings to monitor system condition. It is available in two dial sizes: a 2.5-inch dial with a 1/4-inch NPT rear connection and a 3.5-inch dial with a 1/2-inch NPT lower or rear connection. Suited for hydronic heating installations and boiler monitoring.

• Measures pressure, temperature, and system head (feet of H2O).
• Available in 2.5-inch dial (1/4-inch NPT rear) and 3.5-inch dial (1/2-inch NPT lower or rear).
• Designed for hot water heating systems and hydronic installations.

Product Highlights

Combined pressure, temperature, and head measurement for hot water heating systems.

Product Information

Standard Information

• Brand: WEISS INSTRUMENTS
• Manufacturer Part Number: WEISS-CTP40L

Technical Specifications

• Manufacturer: Weiss Instruments
• Manufacturer Part Number: WEISS-CTP40L
• Model / Code: CTP40L / 890754
• Product Type: Tri-O-Meter (combined pressure, temperature, system head gauge)
• Measurements: Pressure, temperature, system head (feet of H2O)
• Dial Sizes: 2.5" diameter dial (1/4" NPT rear connection); 3.5" diameter dial (1/2" NPT lower or rear connection)
• Connection: 1/4" NPT rear (for 2.5" dial); 1/2" NPT lower or rear (for 3.5" dial)
• Intended Application: Hot water heating systems / hydronic heating installations
• Condition: New
