Weiss Instruments DG25P-030-4L 2 1/2 inches Dial 0-30 inches H2O (2.5 inch)

Product Description

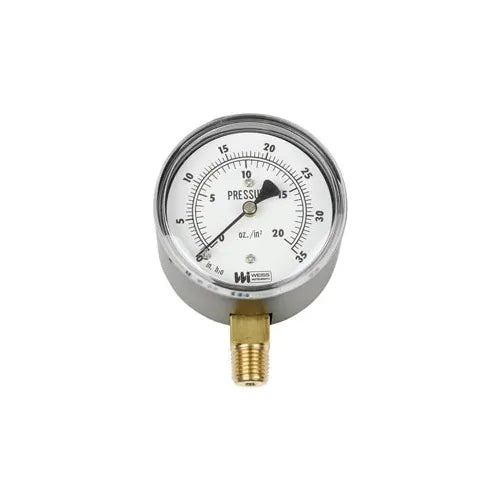

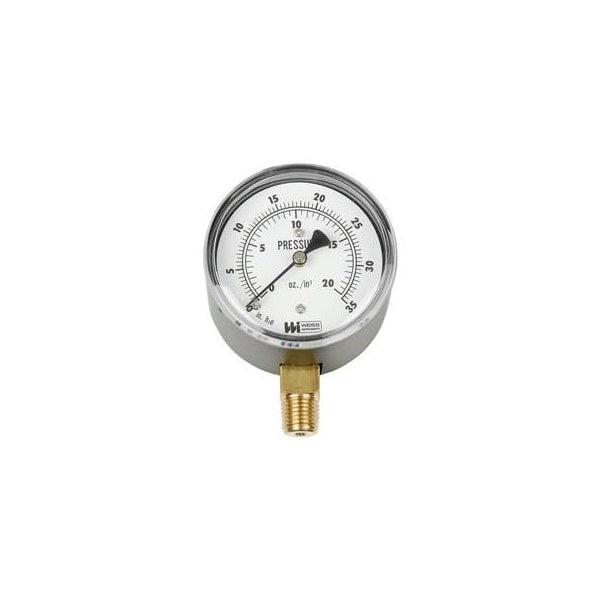

Weiss Instruments DG25P-030-4L is a diaphragm pressure gauge with a 2.5 inch dial calibrated for 0 to 30 inches of water column. The gauge uses a diaphragm sensing element for sensitive low-pressure measurement, furnished in a black drawn steel case with an acrylic window and a 1/4" NPT lower connection. It is specified for use at pressures below 15 psi and is suitable for HVAC and pneumatic low-pressure monitoring.

• Diaphragm gauge, 2.5 inch dial, range 0 to 30" H2O; accuracy 1.5% full scale
• 1/4" NPT lower connection and lower mount configuration for panel or piping installation
• Black drawn steel case with acrylic window; designed for pressures below 15 psi

Product Highlights

2.5" diaphragm gauge, 0-30" H2O range, 1/4" NPT lower, 1.5% FS accuracy

Product Information

Standard Information

• Brand: WEISS INSTRUMENTS
• Manufacturer Part Number: DG25P-030-4L
• Country of Origin: China

Technical Specifications

• Brand: Weiss Instruments
• Manufacturer Part Number: DG25P-030-4L
• Instrument Type: Pressure gauge
• Gauge Type: Diaphragm gauge
• Dial Size: 2.5 inch (2 1/2")
• Range: 0-30" H2O
• Accuracy: 1.5 percent full scale
• Maximum Recommended Pressure: Below 15 psi
• Connection: 1/4" NPT (lower)
• Mounting Type: Lower mount
• Case Material: Black drawn steel
• Window Material: Acrylic
• Package Quantity: 1
• Country of Origin: China
