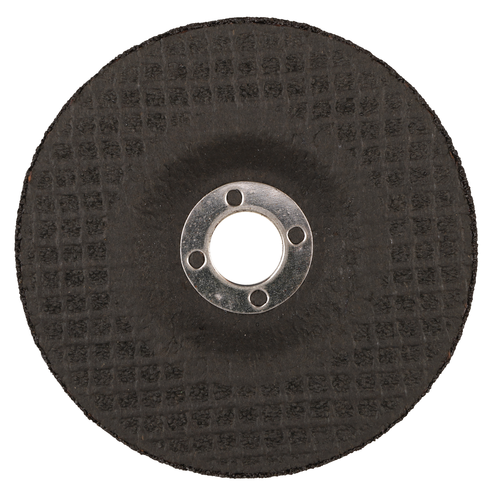

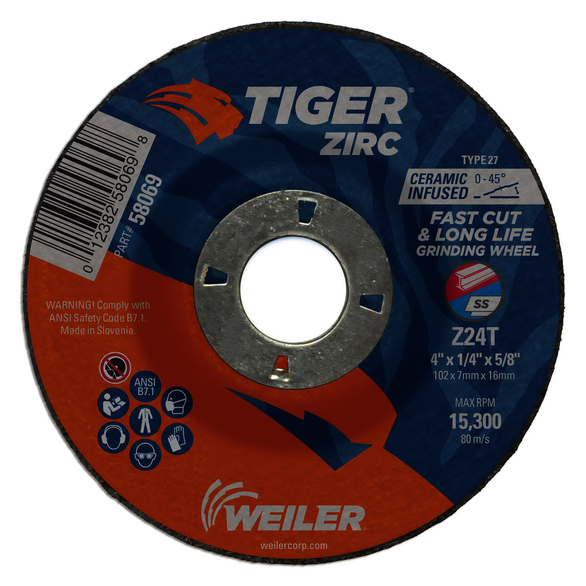

Weiler Tiger 58069 Grinding Wheel 4 Inch

Product Description

The Weiler Tiger 58069 grinding wheel is suitable for grinding and fabrication work. This wheel measures four inches in diameter with a thickness of one-fourth inch. It features a five-eighths inch by eleven UNC center hole, constructed from aluminum oxide with a resin bond, making it effective on iron, stainless steel, and other types of steel.

• Four-inch diameter and one-fourth inch thickness
• Aluminum oxide abrasive with a resin bond
• Meets ANSI B7.1 specifications

Product Highlights

This grinding wheel is reinforced for added strength and supports a maximum speed of fifteen thousand three hundred RPM with a grit size of twenty-four.

Product Information

Standard Information

• Brand: Weiler Abrasives
• UPC: 12382580698

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Applicable Material: Iron, Stainless Steel, Steel
• Bond Type: Resin
• Center Hole Size: 5/8-11 UNC
• Grit: 24
• Maximum Speed: 15300 RPM
• Reinforced: Yes
• Specifications Met: ANSI B7.1
• Wheel Type: Type 27
• Wheel Diameter: 4 inches
• Wheel Hardness: T
• Wheel Thickness: 1/4 inches
• Wheel Type Number: Type 27
• Grain Type: ZA, C
• Application: Grinding
• Grade/Hardness: T
• Compatible Tool: Right Angle Grinder
