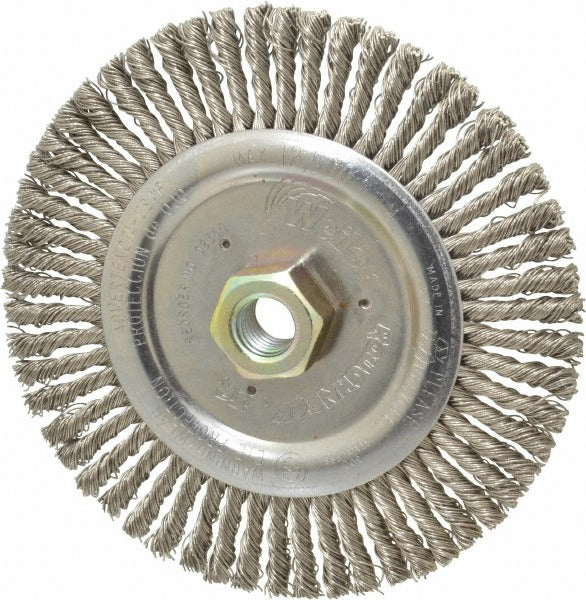

Weiler 94665 Knotted Wheel Brush 6 Inch Stainless Steel

Product Description

The WEILER 94665 is a knotted wheel brush designed for aggressive weld cleaning, deburring, and surface preparation on metal. The 6-inch diameter wheel uses stainless steel stringer bead twist wire to cut through mill scale, weld slag, rust, and oxidation without introducing carbon contamination to the workpiece. The wire diameter falls in the 0.0200 to 0.0299 inch range, providing a balance of aggression and wire life. Rated to 12,500 RPM, this brush mounts via a 5/8-11 threaded arbor and is installed by fabricators, pipefitters, and maintenance welders on standard angle grinders. No shank is included.

This wheel brush is suited to light industrial and heavy fabrication environments where consistent bead-to-bead weld finishing is required. The stringer bead twist wire configuration concentrates wire contact for detail work along weld seams and joint prep. With a 3/16-inch face width and 1-1/8-inch trim length, it fits into tighter joint geometries where a wider face brush would lose contact. Typical applications include structural steel prep, stainless pipe weld cleaning, and surface conditioning prior to inspection or coating.

Key Features

• Knotted stringer bead twist wire for concentrated, high-impact weld cleaning action
• Stainless steel fill material eliminates carbon cross-contamination on stainless or alloy workpieces
• 6-inch outside diameter rated to 12,500 RPM for use on standard angle grinders
• 5/8-11 threaded mount fits common grinder spindle sizes without an adapter
• 3/16-inch face width and 1-1/8-inch trim length suited to narrow weld seam access
• Wire diameter range of 0.0200 to 0.0299 inch balances cutting aggressiveness with brush longevity

Compatibility

Designed for use on angle grinders fitted with a 5/8-11 threaded spindle, which is the standard arbor size on most 4.5-inch to 7-inch right-angle grinders used in fabrication and maintenance trades.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with abrasive wheel safety per ANSI B11 and tool manufacturer guidelines. Confirm the grinder free-speed RPM does not exceed the 12,500 RPM rating of the brush before mounting. Always power down and disconnect the grinder before threading on or removing the brush, and use the correct spindle wrench rather than improvised tools. Eye protection and appropriate PPE are required during operation.
