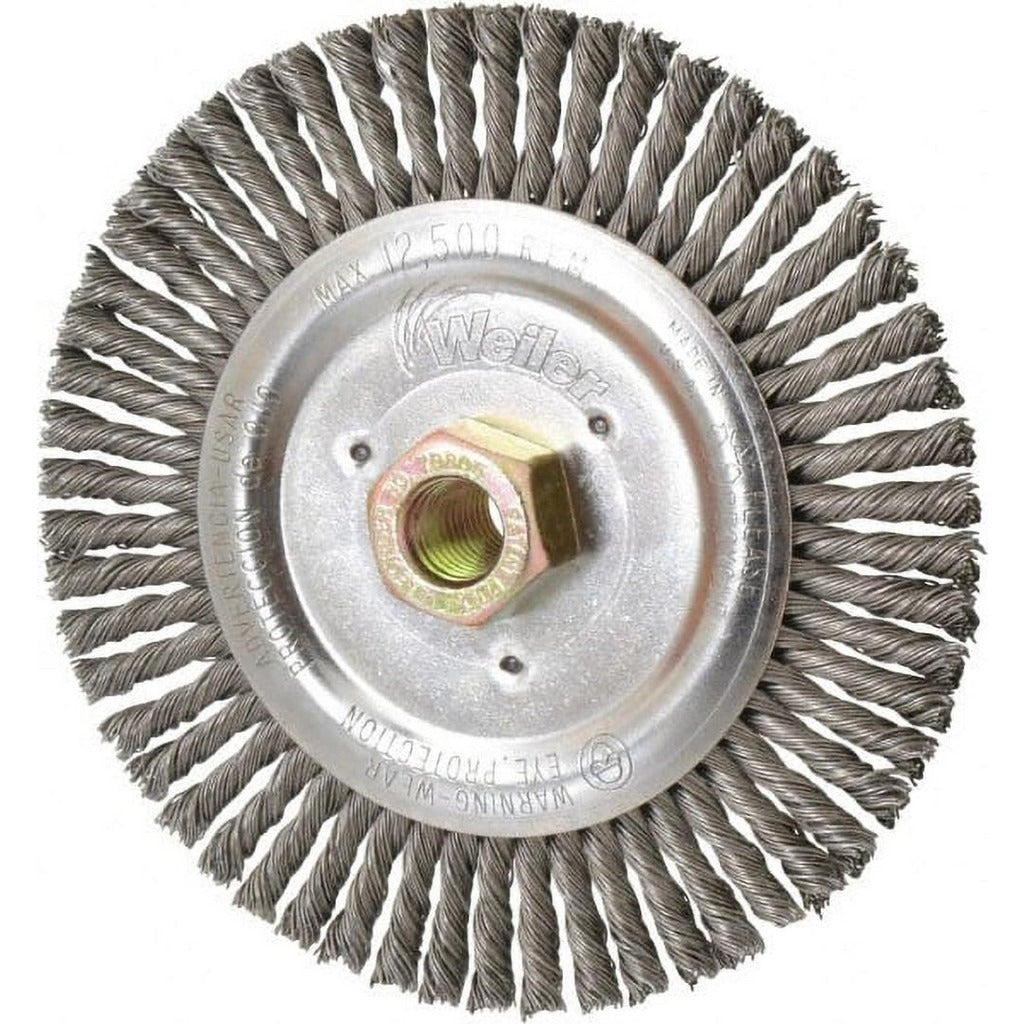

Weiler 94075 Stringer Bead Wheel Brush 6 Inch

Product Description

The WEILER 94075 is a stringer bead twist wire wheel brush designed for aggressive weld cleaning, rust removal, and surface preparation on metal fabrication and industrial maintenance applications. The brush features a 6-inch outside diameter and a 0.5-inch face width, with carbon steel fill wire in the 0.020 to 0.029-inch diameter range. The dual hex nut arbor accepts a 5/8-11 threaded mount, providing secure attachment to angle grinders and bench grinders. Rated to 12,500 RPM, this brush is built for sustained use in demanding shop and field environments. A licensed tradesperson or fabricator handles installation and operation.

This wheel brush is suited for weld bead blending, mill scale removal, and pre-weld or post-weld surface cleaning on structural steel, pipe, and plate. The stringer bead twist construction concentrates wire contact force for effective cleaning in tight weld joints and corners. Typical users include pipeline welders, ironworkers, boilermakers, and industrial maintenance technicians working with carbon steel substrates. The 1.25-inch trim length provides consistent contact pressure throughout the wire life cycle.

Key Features

• 6-inch outside diameter with 0.5-inch face width for focused wheel contact
• Stringer bead twist wire knot type for concentrated cleaning action on welds and tight joints
• Carbon steel fill wire in 0.020 to 0.029-inch diameter range for aggressive material removal
• 5/8-11 threaded dual hex nut arbor for secure grinder mounting without additional hardware
• 12,500 RPM maximum speed rating for compatibility with standard angle grinders
• 1.25-inch trim length for extended service life and consistent wire contact

Compatibility

Designed as an OEM-style replacement or direct-fit wheel brush for angle grinders and bench grinders equipped with a 5/8-11 threaded arbor.

Installation Notes

Installation is performed by a qualified fabricator, welder, or industrial maintenance technician. Power down and fully de-energize the grinder before mounting or removing the wheel brush. Verify the tool spindle speed rating meets or exceeds the 12,500 RPM maximum marked on the brush before operation. Always wear appropriate PPE including eye and face protection, and confirm the wheel is rated for the application per ANSI B11 and relevant shop safety standards.
