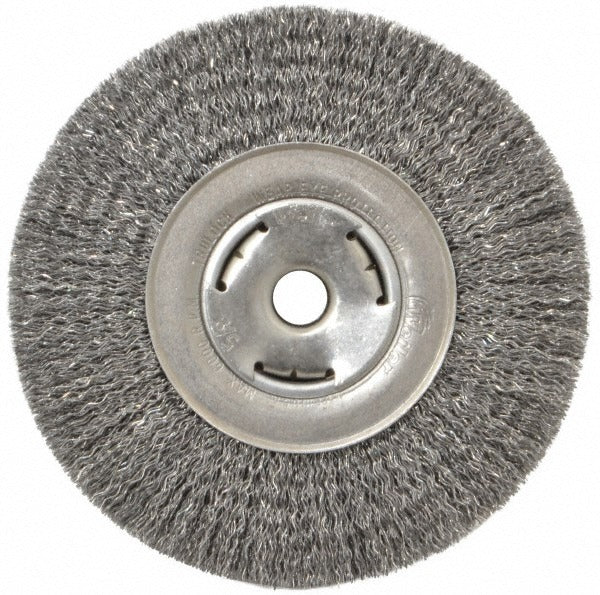

Weiler 93632 Wheel Brush 7 Inch Carbon Steel Crimped

Product Description

The WEILER 93632 is a 7-inch diameter wheel brush designed for heavy-duty surface preparation, deburring, cleaning, and finishing work. It mounts via an arbor hole and uses crimped carbon steel wire to deliver consistent, controlled abrasive action across metal and fabricated surfaces. The brush runs at a maximum of 6,000 RPM and features a face width of 7/8 inch, making it well-suited for bench grinder and pedestal grinder applications. Wire diameter falls in the 0.0100 to 0.0199 inch range, providing a balance between aggressive material removal and surface finish quality. No shank is included; the arbor hole mount requires a compatible spindle or arbor.

This wheel brush is used in metalworking, welding prep, and general industrial maintenance environments. Typical applications include weld scale removal, rust and oxidation cleaning, casting cleanup, and edge blending on ferrous metals. It is a standard tool in fabrication shops, maintenance departments, and mechanical repair facilities. The 1-5/8-inch trim length allows the wire to flex adequately for consistent contact on uneven or contoured work surfaces.

Key Features

• 7-inch outside diameter fits standard bench and pedestal grinders
• Crimped carbon steel wire for flexible, consistent abrasive action
• 6,000 RPM maximum operating speed
• Arbor hole mount — no shank included
• 7/8-inch face width for focused surface contact
• 1-5/8-inch trim length provides wire flex on contoured surfaces

Compatibility

Designed as an OEM-style replacement or direct-use wheel brush for bench grinders and pedestal grinders equipped with a compatible arbor spindle accepting a standard 5/8-inch arbor hole mount.

Installation Notes

Installation is performed by qualified machinists, fabricators, or maintenance technicians. Before mounting, power down and lock out the grinder in accordance with applicable OSHA lockout/tagout procedures. Verify the grinder spindle speed does not exceed the 6,000 RPM maximum rating of the brush before operation. Ensure the arbor flanges and blotter washers are properly seated and that the spindle nut is tightened securely before use. Always use appropriate eye and face protection when operating wire wheel brushes.
