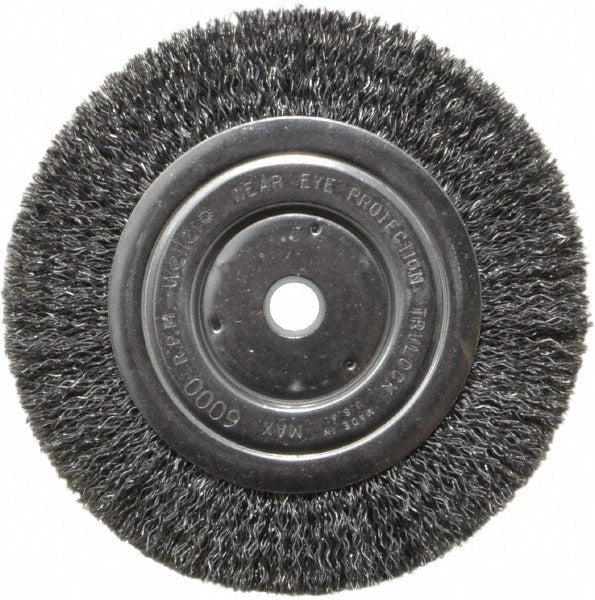

Weiler 93629 6 Inch Crimped Wire Wheel Brush Carbon Steel

Product Description

The WEILER 93629 is a 6-inch diameter crimped wire wheel brush designed for surface preparation, deburring, cleaning, and rust or scale removal on metal workpieces. Mounted via an arbor hole, it installs on bench grinders, angle grinders, and similar stationary or portable power tools. The medium-grade carbon steel fill wire runs in a crimped configuration, which provides consistent contact pressure and helps the brush conform to irregular surfaces. Rated to 6,000 RPM, the 93629 suits demanding shop and field applications handled by machinists, fabricators, welders, and maintenance technicians who need reliable wire brush performance without special tooling.

This wheel brush is suited for industrial and commercial shop environments where metal parts require scale removal, weld spatter cleanup, surface conditioning, or general deburring before finishing. The 5/8-inch face width and 1-1/16-inch trim length give it enough contact area for efficient work on flat and contoured metal surfaces. No shank is included, so it mounts directly via the arbor hole to compatible spindle-drive equipment. It is not encapsulated, making it a straightforward open-face wire brush for standard bench or angle grinder use.

Key Features

• 6-inch outside diameter for broad surface coverage on bench and angle grinders
• Crimped carbon steel wire provides flexible contact and even pressure across irregular surfaces
• Medium grade fill wire in the 0.0100 to 0.0199-inch diameter range balances aggression and surface finish
• Arbor hole mount — no shank included — fits standard spindle-drive grinders directly
• 6,000 RPM maximum speed rating supports high-throughput metal prep work
• 5/8-inch face width and 1-1/16-inch trim length suit flat and moderately contoured workpieces

Compatibility

Designed as an arbor hole mount wheel brush compatible with bench grinders, pedestal grinders, and angle grinders that accept a standard arbor spindle fitting a 5/8-inch bore.

Installation Notes

Installation and use should be performed by qualified personnel familiar with abrasive and wire brush safety practices. Always power down and disconnect or de-energize the grinder before mounting or removing the wheel brush. Verify that the tool spindle speed does not exceed the 6,000 RPM maximum rating marked on the brush before operation. Operators should wear appropriate personal protective equipment including eye protection and gloves, and confirm the arbor hardware is properly tightened before starting the tool.
