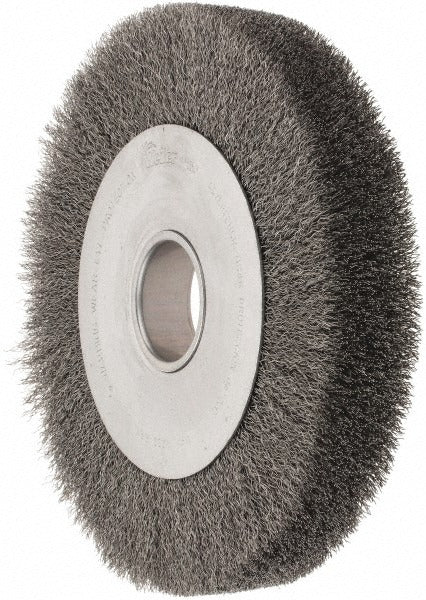

Weiler 93628 Wheel Brush 10 in Carbon Steel Crimped

Product Description

The WEILER 93628 is a 10-inch diameter wheel brush designed for aggressive surface preparation, deburring, cleaning, and finishing on metal workpieces. It uses crimped carbon steel wire filaments, which provide consistent wire-to-surface contact and longer service life compared to knotted wire configurations. The brush mounts via a 2-inch arbor hole and is rated to a maximum of 4,000 RPM. It is used by fabricators, welders, pipefitters, and maintenance trades in industrial and shop environments where power tool surface work is routine.

This wheel brush is suited for bench grinder or pedestal grinder applications where the operator needs a large-diameter brush for weld cleaning, rust removal, scale removal, and surface conditioning on steel, iron, and similar ferrous materials. The 1-5/8-inch face width and 1-7/8-inch trim length provide a substantial contact zone for wide surface passes. No shank is included, as this brush is designed for arbor-hole mounting only.

Key Features

• 10-inch outside diameter for wide surface coverage on bench or pedestal grinders
• Crimped carbon steel wire construction for consistent contact and durability on ferrous surfaces
• 2-inch arbor hole mount — no shank included
• Rated to 4,000 RPM maximum operating speed
• 1-5/8-inch face width and 1-7/8-inch trim length for substantial working contact
• Filament wire diameter in the 0.0100 to 0.0199-inch range for moderate aggressiveness

Compatibility

Designed for use with bench grinders and pedestal grinders fitted with a 2-inch arbor. Verify that the grinder spindle speed does not exceed the 4,000 RPM maximum rating of this brush before installation.

Installation Notes

Installation should be performed by a qualified operator familiar with power tool safety procedures. Always power down and lock out the grinder before mounting or removing the brush. Confirm the machine arbor speed does not exceed the 4,000 RPM maximum marked on this brush — exceeding rated speed is a serious safety hazard. Wear appropriate PPE including eye protection and gloves during installation and operation, in accordance with ANSI B165.1 or applicable workplace safety standards.
