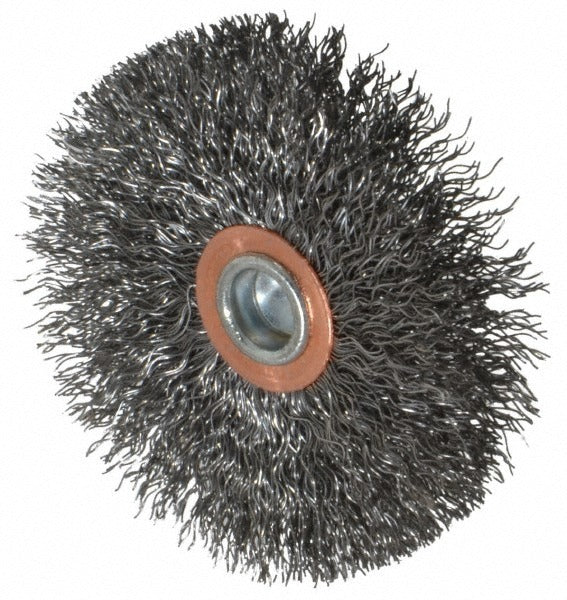

Weiler 90313 Crimped Carbon Steel Wheel Brush 3 in

Product Description

The WEILER 90313 is a crimped carbon steel wheel brush designed for surface preparation, deburring, cleaning, and blending on metal and other hard materials. The 3-inch outside diameter and 1/2-inch face width make it suited for working in confined areas or along seams and edges. The 1/4-inch shank mounts directly into a die grinder or drill press collet without adapters. Rated to 20,000 RPM, this brush handles high-speed power tool applications. Carbon steel fill wire in the 0.010 to 0.019-inch diameter range provides firm, consistent contact across the work surface. The crimped wire construction allows the filaments to flex slightly under load, reducing gouging while maintaining aggressive material removal.

This wheel brush is used in fabrication shops, maintenance facilities, and field service work where weld spatter removal, rust cleaning, scale removal, or surface prep is required before coating or inspection. The 1/4-inch shank is a standard fit for most die grinders and rotary tools used by machinists, welders, pipefitters, and maintenance technicians. The compact 3-inch diameter allows access to areas that cup brushes or flap wheels cannot reach, including pipe joints, structural angles, and channel stock.

Key Features

• 3-inch outside diameter suits confined surface prep and edge work
• Crimped carbon steel wire provides firm flex with consistent scratch pattern
• 1/4-inch shank mounts to standard die grinders and rotary tools without adapters
• 20,000 RPM maximum speed rating supports high-speed power tool use
• 1/2-inch face width concentrates wire contact for seam and edge cleaning
• 1-inch trim length maintains brush geometry through the working life of the fill

Compatibility

Designed for use with die grinders, drill presses, and rotary tools equipped with a 1/4-inch collet or chuck. Confirm the tool RPM rating meets or exceeds the 20,000 RPM maximum speed of the brush before mounting.

Installation Notes

Installation and use should be performed by qualified personnel familiar with abrasive accessory safety practices. Power down and disconnect the tool from the power source before mounting or removing the brush. Inspect the brush for damaged or broken wire filaments before each use and replace if compromised. Always wear appropriate eye protection and a face shield when operating wire brushes at speed, per ANSI B11 and tool manufacturer guidelines.
