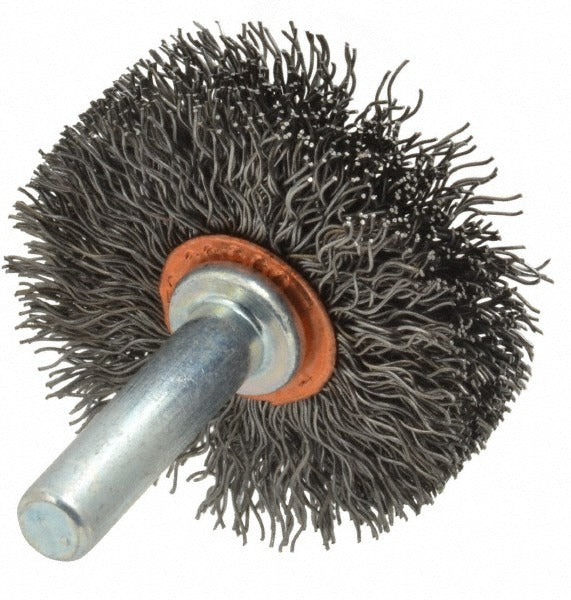

Weiler 90310 Wheel Brush 1-1/2 in Crimped Carbon Steel

Product Description

The WEILER 90310 is a 1-1/2 inch diameter wheel brush designed for surface preparation, deburring, and cleaning applications in industrial and trade settings. It uses crimped carbon steel wire with a filament diameter in the 0.010 to 0.019 inch range, which provides flexible, consistent abrasive action without aggressive stock removal. The brush mounts via a 1/4 inch shank that is included with the unit, making it ready to install directly into a rotary tool, die grinder, or drill. It is rated to 20,000 RPM, suiting high-speed portable tools common in fabrication, maintenance, and mechanical service work.

This brush is suited for light to medium surface cleaning tasks including rust removal, weld spatter cleanup, scale removal, and edge blending on metal workpieces. The 1/2 inch face width and 1/2 inch trim length provide a focused contact area for working in confined areas or along seams and joints. It is commonly used by welders, pipefitters, machinists, and maintenance technicians working on ferrous metal surfaces where controlled wire action is required.

Key Features

• 1-1/2 inch outside diameter with 1/2 inch face width for focused surface contact
• Crimped carbon steel wire for flexible abrasive action and consistent finish
• Filament wire diameter in the 0.010 to 0.019 inch range for light to medium duty work
• Rated to 20,000 RPM for compatibility with high-speed die grinders and rotary tools
• 1/4 inch shank included — no separate arbor required
• 1/2 inch trim length provides controlled, even wire engagement

Compatibility

Designed for use with rotary tools, die grinders, and drills accepting a 1/4 inch shank. Suitable for ferrous metal surface preparation in fabrication and maintenance applications.

Installation Notes

Installation should be performed by the tool operator prior to use. Ensure the host tool is powered off and unplugged or the air supply is disconnected before mounting the brush. Insert the 1/4 inch shank fully into the collet or chuck and tighten securely before operation. Do not exceed the 20,000 RPM maximum speed rating of the brush, and always use appropriate eye and face protection when operating wire brush accessories.
