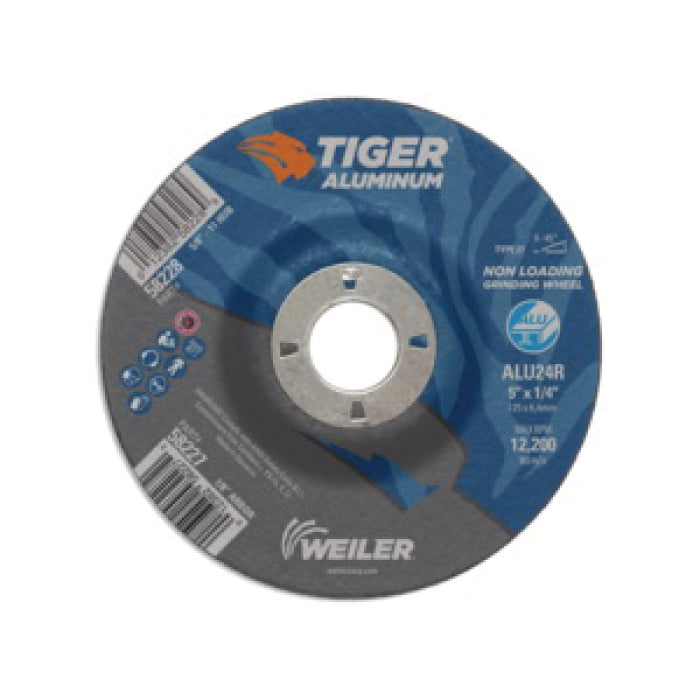

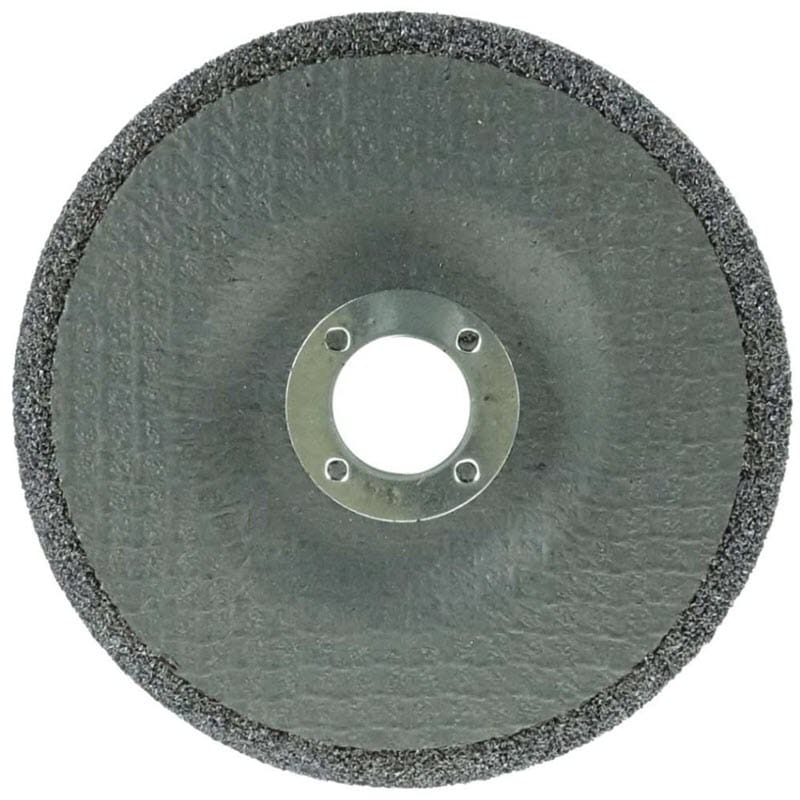

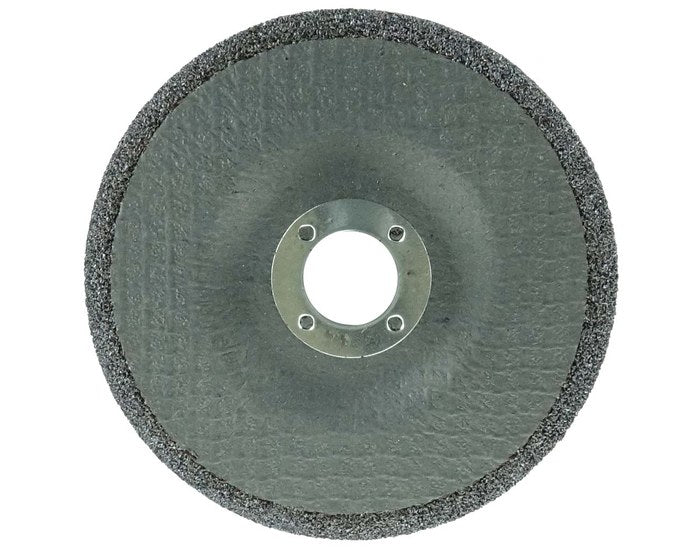

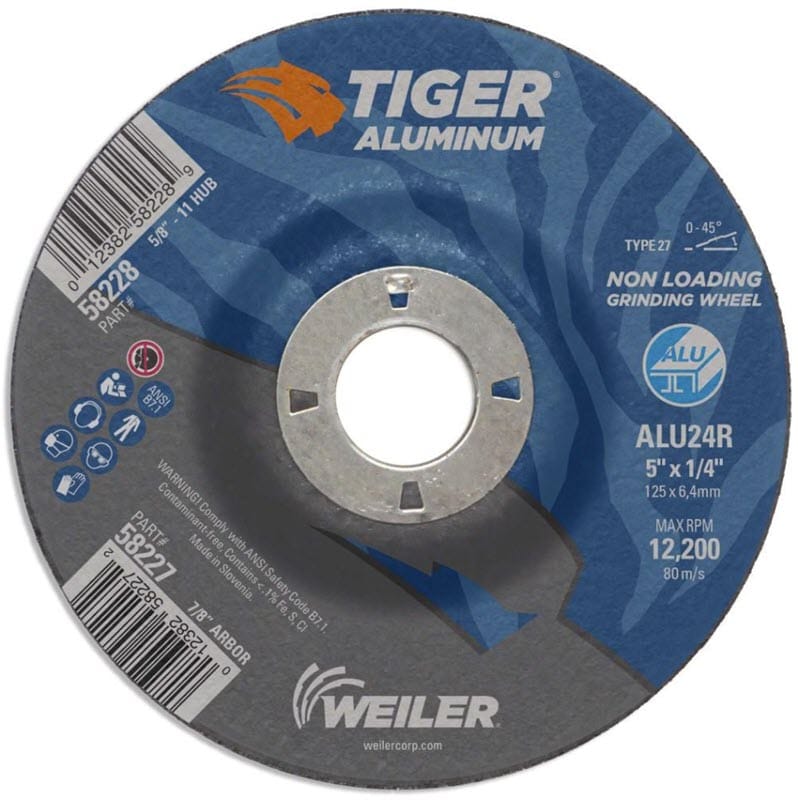

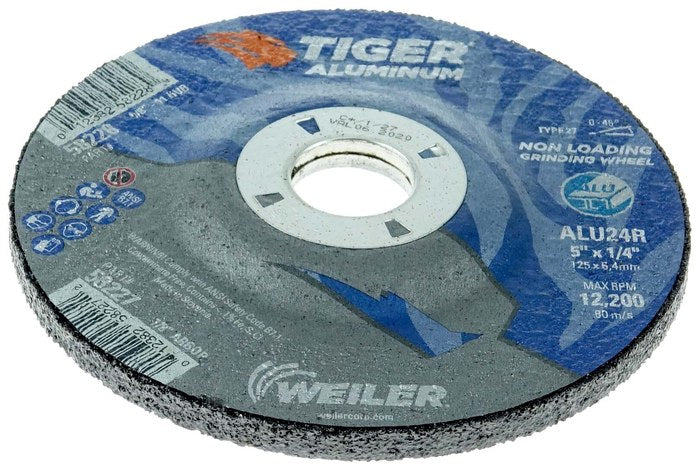

Weiler 58227 Tiger 24 Grit Type 27 Grinding Wheel 5 in x 1/4 in (0°-45°)

Product Description

Weiler 58227 is a Type 27 depressed-center grinding wheel formulated for aluminum. The 5 in diameter by 1/4 in thick wheel features a 7/8 in arbor, 24 grit silicon carbide and aluminum oxide abrasive, a resin non-loading bond and reinforced construction, rated to 12,200 rpm. It is intended for surface grinding, heavy stock removal, weld blending and edge beveling on aluminum with right angle grinders.

• Non-loading resin formulation and silicon carbide/aluminum oxide blend for consistent cut rate on aluminum
• Type 27 depressed-center profile (0°-45° grinding angles), 5 in diameter, 1/4 in thickness, 7/8 in arbor
• Reinforced construction with R hardness grade, maximum speed 12,200 rpm; grade ALU24R

Product Highlights

5 in x 1/4 in Type 27 aluminum grinding wheel, 24 grit ALU24R, 7/8 in arbor, non-loading resin bond, max 12,200 rpm

Product Information

Standard Information

• Brand: WEILER
• Manufacturer Part Number: 58227
• Country of Origin: Slovenia

Technical Specifications

• Brand: Weiler
• MPN: 58227
• Trade Name: Tiger
• Model: GW-5 x 1/4 x 7/8 ALU24R T27
• Diameter: 5 in
• Thickness: 0.25 in
• Arbor Hole: 0.875 in
• Wheel Type: Type 27 (depressed center)
• Grit: 24 (Coarse)
• Abrasive Material: Silicon carbide and aluminum oxide blend
• Bond: Resin (non-loading formula)
• Grade / Specification: ALU24R
• Hardness Grade: R
• Reinforcement: Reinforced (triple fiberglass reinforcement reported)
• Maximum RPM: 12,200 rpm
• Intended Materials: Aluminum
• Applications: Surface grinding; heavy stock removal; weld removal and blending; edge beveling; chamfering
• Used With: Right angle grinders
• Country Of Origin: Slovenia
• UOM: Each
