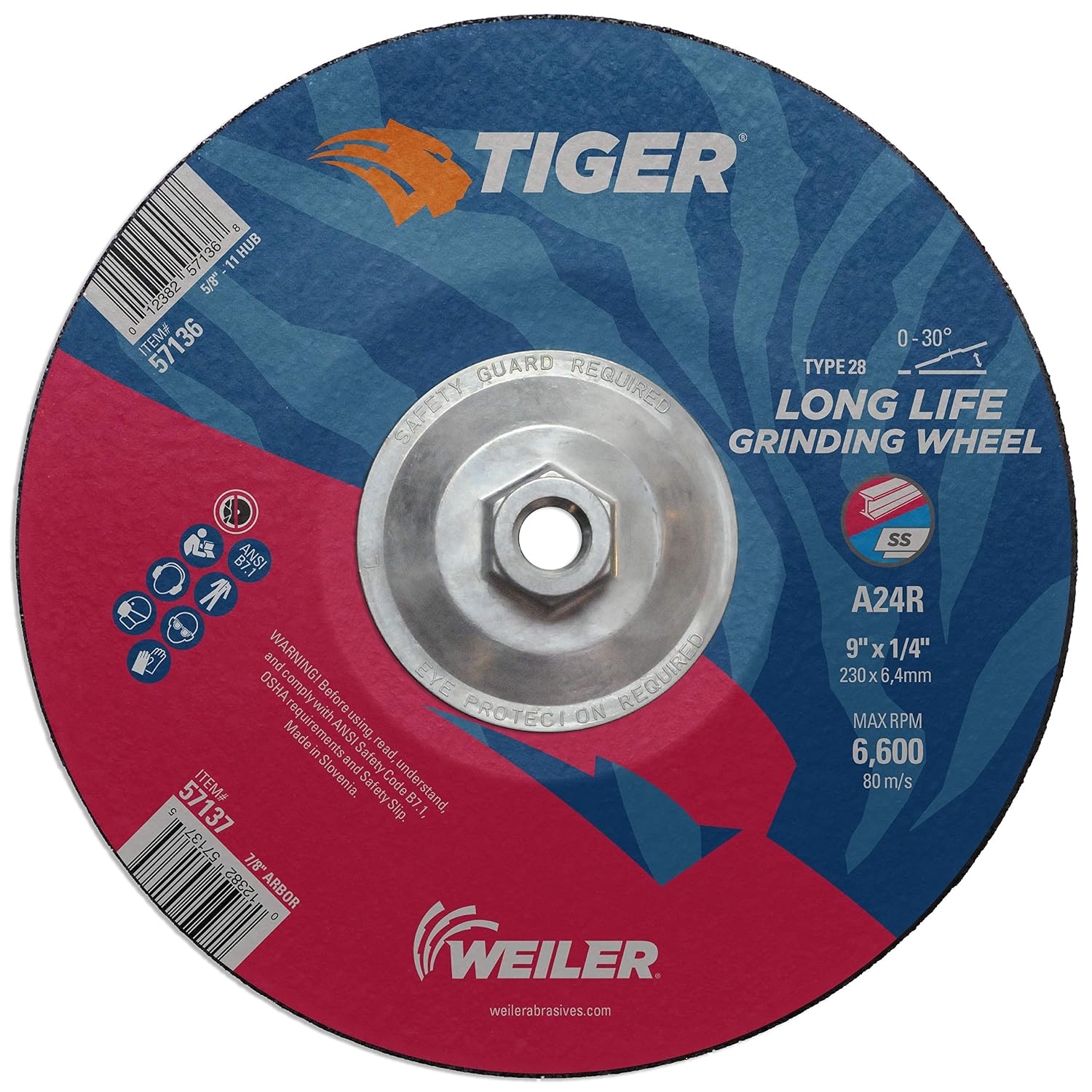

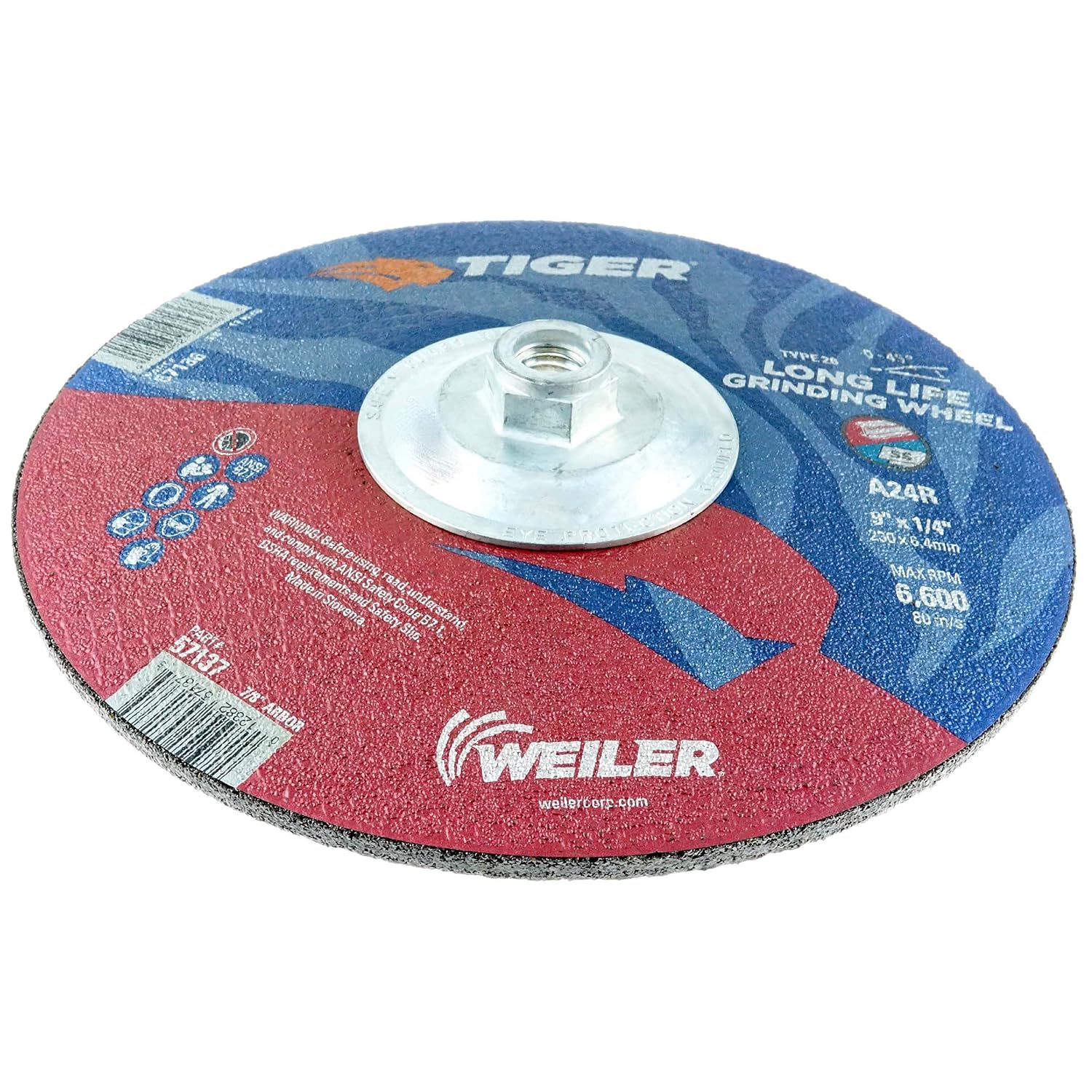

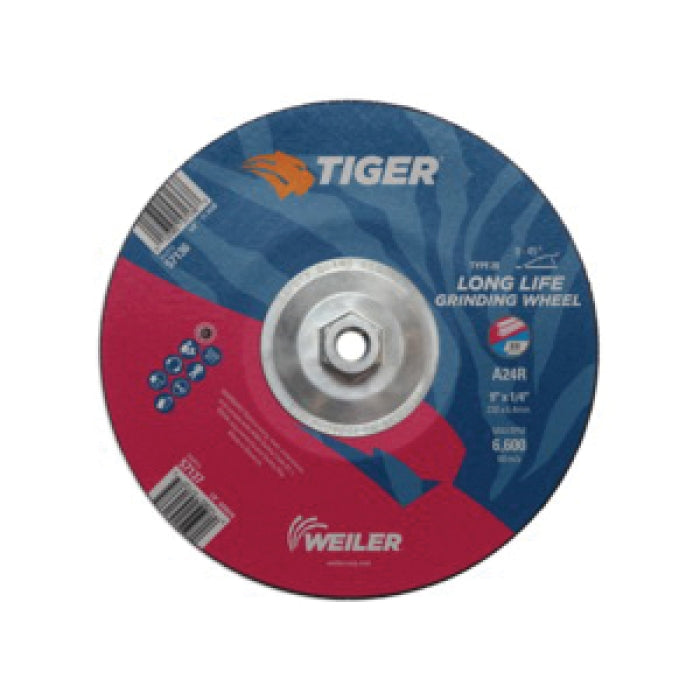

Weiler 57136 Tiger Type 28 Grinding Wheel 9 x 1/4 (Pack of 10)

Product Description

Weiler 57136 is a Type 28 Tiger grinding wheel with a 9 in diameter and 1/4 in thickness, featuring A24R aluminum oxide (24 grit) abrasive and a 5/8-11 nut. The bonded (resin) construction with fiberglass reinforcement is rated to 6,600 RPM and is intended for aggressive metal grinding tasks. Typical applications include heavy stock removal, scale and weld removal/blending, edge beveling, and general-purpose metal grinding.

• 9 in diameter x 1/4 in thickness; A24R aluminum oxide abrasive (24 grit); Type 28 depressed center design
• 5/8-11 threaded nut/arbor; maximum speed 6,600 RPM; designed for use with right-angle grinders
• Bonded/resin construction with fiberglass reinforcement; suitable for carbon steel, structural steel and cast iron

Product Highlights

Type 28 Tiger wheel, A24R (24 grit) aluminum oxide, 9 x 1/4 in, 5/8-11 arbor, 6,600 RPM, sold in 10-piece packs

Product Information

Standard Information

• Brand: WEILER
• Manufacturer Part Number: 57136
• Country of Origin: Slovenia

Technical Specifications

• Brand: Weiler
• Manufacturer: Weiler Corporation
• Manufacturer Part Number (MPN): 57136
• Product Name: Tiger Type 28 Grinding Wheel
• Diameter: 9 in
• Thickness: 1/4 in
• Grit Grade: A24R (24 grit)

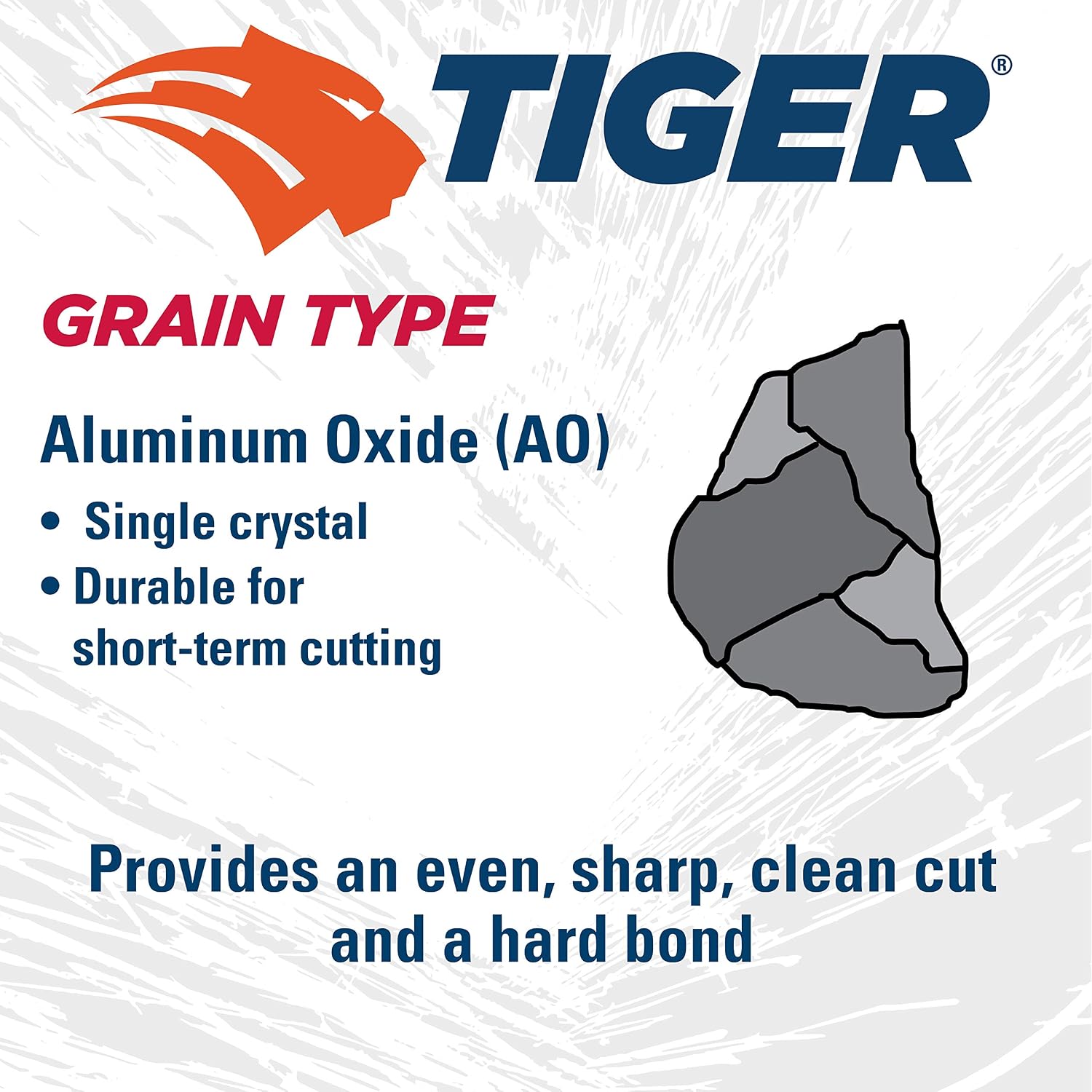

• Abrasive Material: Aluminum oxide
• Wheel Type: Type 28 (depressed center / concave)
• Arbor / Thread Size: 5/8-11 (5/8 in-11 UNC)
• Nut Size: 5/8-11
• Maximum RPM: 6,600 rpm
• Bond Type / Construction: Bonded (resin)
• Reinforcement: Triple fiberglass reinforcement
• Wheel Hardness: R
• Applicable Materials: Carbon steel; structural steel; cast iron; general-purpose metals
• Applications: Heavy stock removal; scale removal; weld removal and blending; edge beveling; general grinding
• Mounting: Quick-change threaded / nutted hub for right-angle grinders
• Package Quantity: Pack of 10
• Package Weight: 15.2 Pounds
• Package Dimensions: 10.5 x 9.3 x 9.3 inches
• Certifications / Standards: ANSI B7.1-2010
• Country of Origin: Slovenia
• UPC: 012382571368
