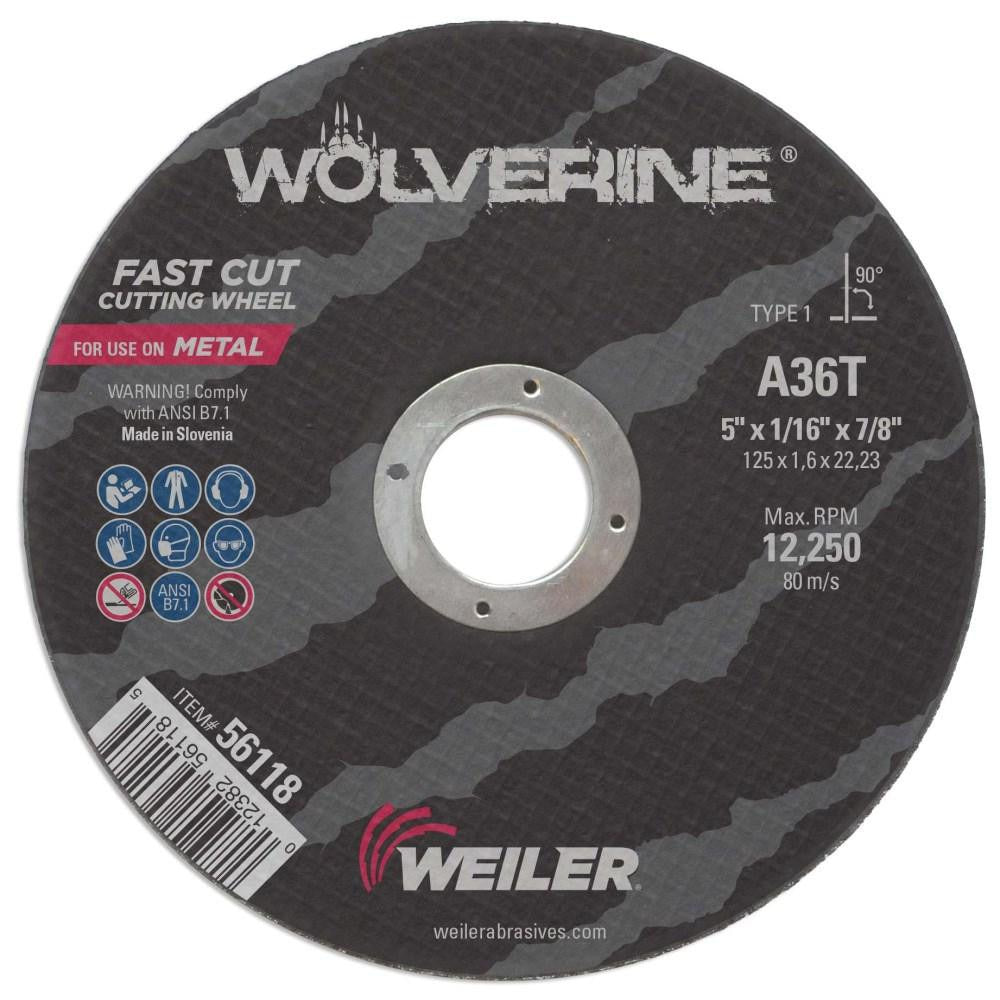

Weiler 56118 Type 1 Cut-off Wheel 5 in 36 Grit Steel

Product Description

The WEILER 56118 is a Type 1 (01/41) aluminum oxide cut-off wheel designed for cutting steel in industrial and fabrication environments. Measuring 5 inches in diameter with a 1/16-inch thickness and a 7/8-inch arbor hole, this reinforced resinoid-bonded wheel carries a 36-grit rating and a maximum operating speed of 12200 RPM. The black wheel is rated to specification A36T and features a hardness code of T, making it suitable for aggressive straight cutting on steel workpieces. It is sold individually but requires a minimum order quantity of 25 units.

This cut-off wheel is intended for use on steel in both shop and field cutting applications. The Type 1 flat profile makes it compatible with standard angle grinders and dedicated cut-off tools. Typical use cases include metal fabrication shops, structural steel work, pipe cutting, and general maintenance cutting tasks where a fast, clean cut on ferrous material is needed. The reinforced construction helps resist breakage under lateral load during normal cutting passes.

Key Features

• Type 1 (01/41) flat wheel profile for straight cutting applications
• Aluminum oxide abrasive with reinforced resinoid bond for durability
• 36 grit for aggressive material removal on steel
• 12200 RPM maximum operating speed
• 1/16-inch thin kerf minimizes material loss per cut
• 7/8-inch arbor hole fits standard angle grinder spindles

Compatibility

Designed for use on steel with standard angle grinders and cut-off machines accepting a 5-inch diameter, 7/8-inch arbor wheel.

Installation Notes

Cut-off wheels must be installed and operated by personnel familiar with ANSI B7.1 safety standards for abrasive wheels. Inspect the wheel for cracks or damage before mounting and never operate above the rated maximum RPM. Ensure the grinder guard is in place before use. Do not apply side pressure to a Type 1 cut-off wheel, as it is designed exclusively for straight cutting.
