Weiler 51232 Tiger X Flap Disc 7 in 40 Grit 5/8-11 UNC

Product Description

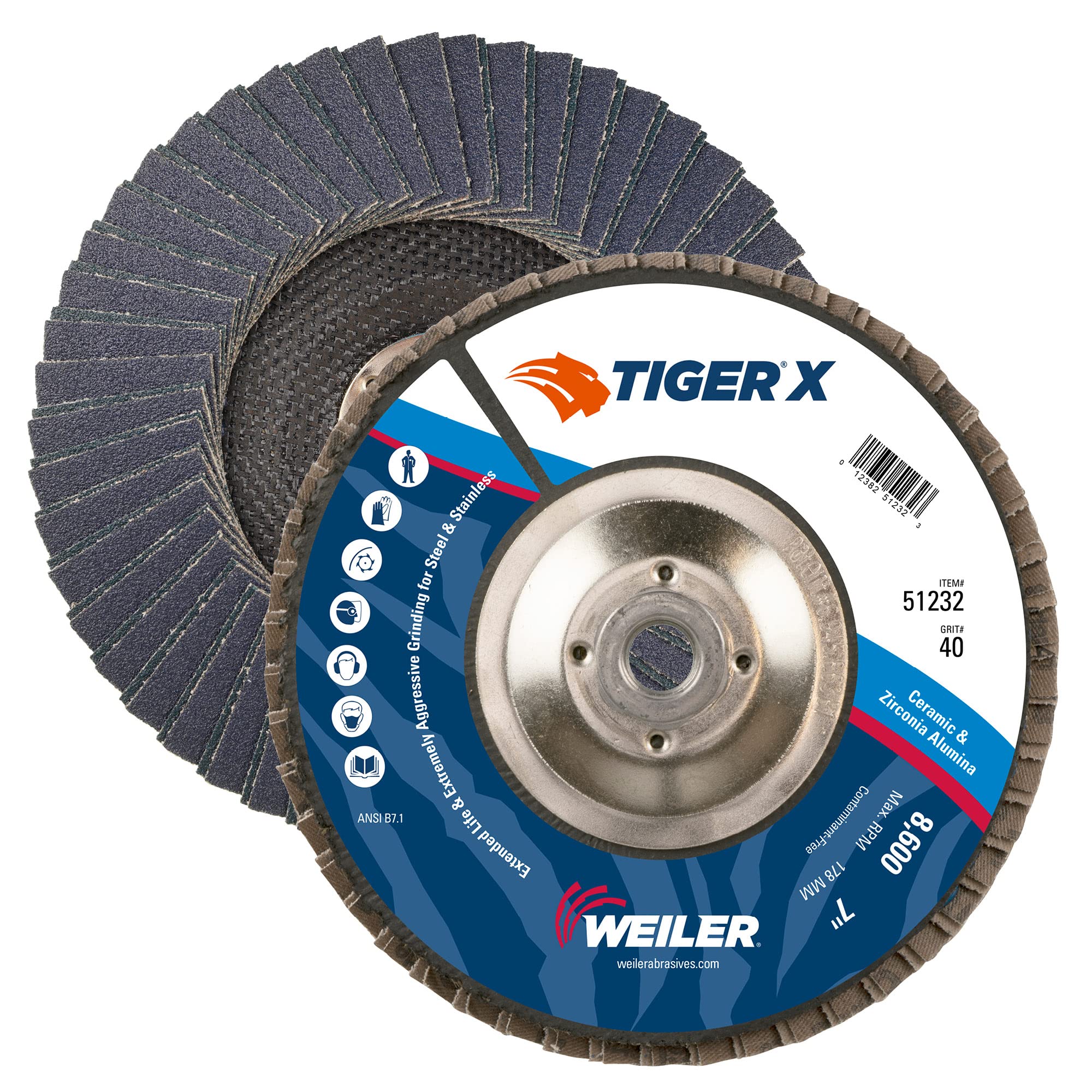

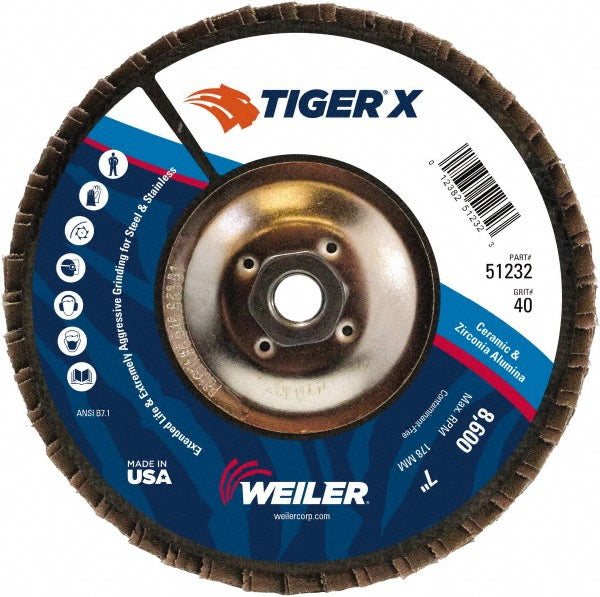

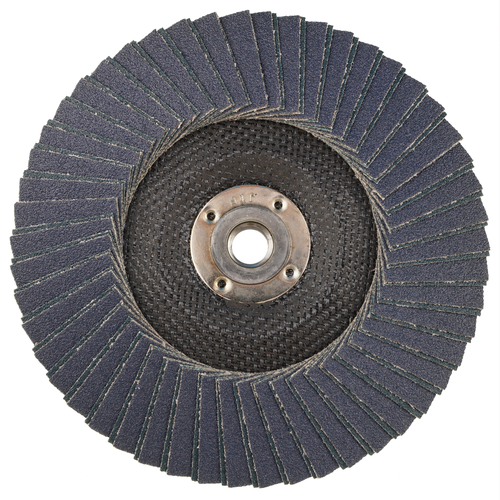

The WEILER 51232 Tiger X Coated Abrasive Flap Disc features a standard density, 7-inch diameter, and a 5/8-11 UNC center hole thread size. With a 40 grit and coarse grade, it utilizes a zirconia alumina/ceramic alumina abrasive and has a type 27 flat disc with phenolic backing. It is designed for right angle grinder tool usage.

• Ideal for a working angle of 15 to 25 deg
• Maximum aggression and long life
• Suitable for right angle grinder tool usage

Product Highlights

This flap disc combines an advanced anchoring system and dual flap design for fast grinding and long disc life, increasing productivity.

Product Information

Standard Information

• Brand: WEILER
• Manufacturer Part Number: 51232
• Country of Origin: US

Technical Specifications

• Abrasive Material: Zirconia Alumina/Ceramic Alumina
• Backing Material: Phenolic
• Center Hole Thread Size: 5/8-11 UNC
• Disc Diameter: 7 in
• Disc Type: Type 27 Flat
• Grade: Coarse
• Grit: 40
• Maximum Speed: 8600 rpm
• Type: Standard Density
• Arbor Hole: 5/8-11"
• Product Type: ABRASIVE_WHEELS
• Abrasive Trade Name: TIGER X
• Applicable Materials: Steel; Stainless Steel; Cast Iron; Non-Ferrous Soft Metals
• Applications: Weld Blending; Flat Surface Grinding; Finishing; Heavy Stock Removal; Light Pressure Blending; Deburring
• Arbor Diam [Nom]: 5/8 in - 11
• Body Material: Phenolic Backing
• Style: Flat Style (Type 27)
• Tool Shape: Type 27
• Used With: Right Angle Grinder
• Grain Type: ZA, C
• Maximum RPM: 8600
• Flap Density: Standard Density
• ANSI Standard: B7.1
• Arbor Hole Size: 5/8"-11 UNC
• Backing Plate Material: Phenolic
• Flap Disc Size: 7x5/8-11
• Flap Disc Arbor Hole: 5/8-11" Nut
• Flap Disc Max RPM: 8,600
• Flap Disc Type: Flat - Type 27
• Flap Disc Grain: Ceramic Alumina and Zirconia Alumina
• Attachment Type: Threaded Arbor Hole
• Abrasive Type: Coated
• Material Application: Stainless Steel; Steel
• Series: Tiger X
