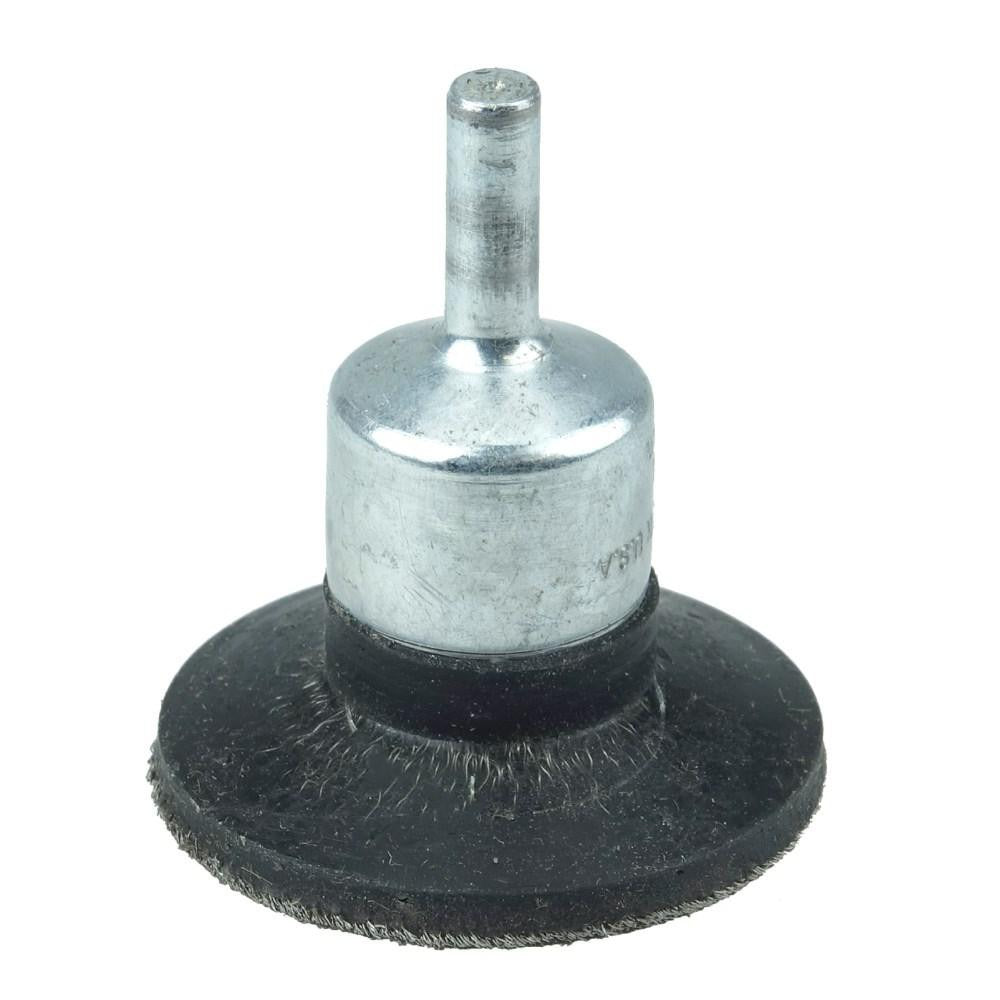

Weiler 35222 End Brush 1.75in Steel Crimped Wire 6mm Shank

Product Description

The WEILER 35222 is a crimped-wire end brush designed for aggressive surface preparation and cleaning on steel and other metal workpieces. It measures 1-3/4 inches in brush diameter with a 2-inch overall length and a 6 mm shank diameter, making it compatible with standard die grinders and rotary tools. The brush body features a black elastomer encapsulation that gradually wears down to expose consistent short wire trim throughout the tool's service life. Heat-stabilized construction maintains brush geometry under sustained use. Rated to 25,000 RPM, it delivers maximum aggression with no flexibility in the brushing action, making it suitable for weld cleaning, rust removal, and surface blending in fabrication and maintenance environments.

This end brush is used in metalworking, fabrication, and general industrial maintenance applications. It is well suited for reaching into corners, recesses, and tight weld joints where flat or cup brushes cannot access. The rigid, non-flexible brushing action makes it effective on steel surfaces that require consistent material removal rather than light finishing. Typical installers and users include welders, pipefitters, millwrights, and maintenance technicians working with angle grinders, die grinders, or similar rotary power tools.

Key Features

• Black elastomer encapsulation gradually wears to expose consistent short wire trim for uniform performance throughout tool life
• Heat-stabilized black elastomer construction maintains integrity during extended use
• No flexibility in brushing action delivers maximum aggression for heavy-duty surface prep
• Flared wire configuration increases contact area on curved and irregular surfaces
• Rated to 25,000 RPM for use with standard die grinders and rotary power tools
• 6 mm shank fits common collet sizes on die grinders and rotary tools

Compatibility

Designed for use with die grinders and rotary power tools accepting a 6 mm shank. Suitable for material application on steel surfaces.

Installation Notes

Always verify the tool's rated spindle speed meets or exceeds the brush maximum RPM rating before mounting. Ensure the tool is fully powered down and unplugged before installing or removing the brush. Wear appropriate eye and face protection per ANSI B7.1 and OSHA general industry standards when operating rotary wire brushes. Inspect the brush for damaged or broken wires before each use and replace if wear is uneven or wire retention is compromised.
